Product Description
Product Overview

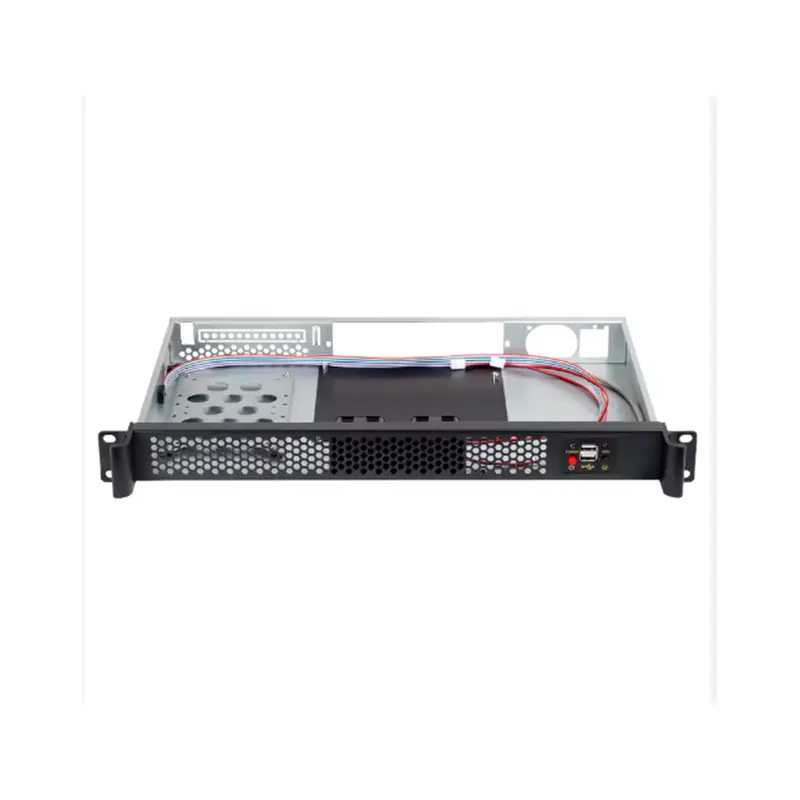

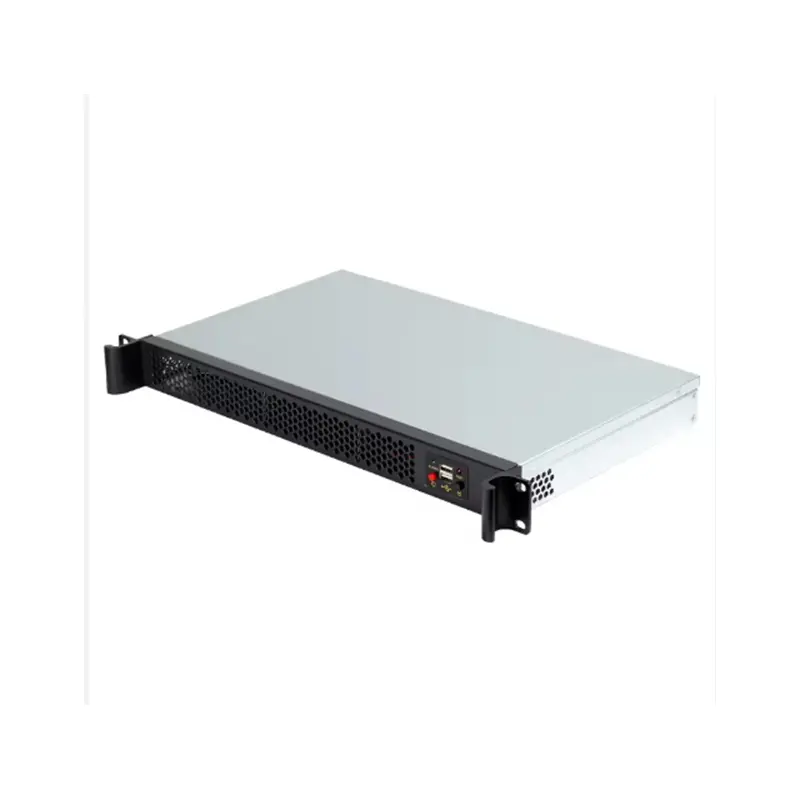

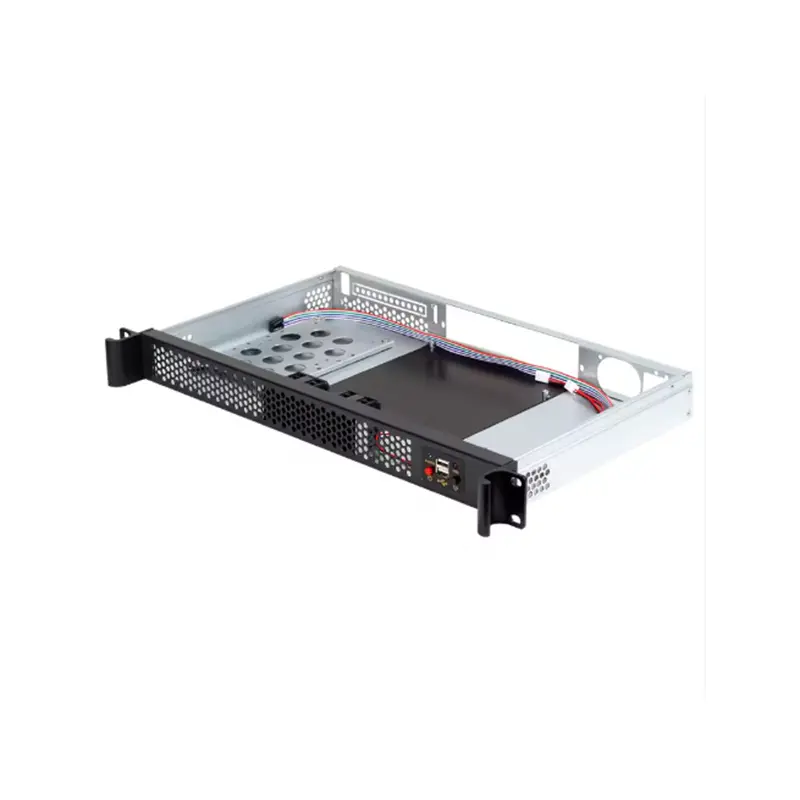

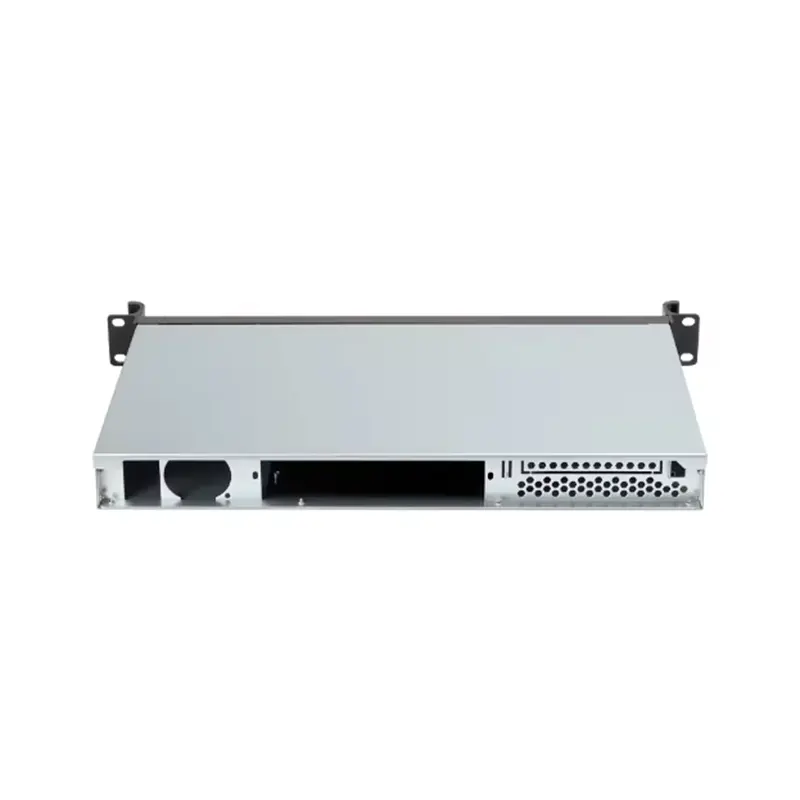

Introducing the 1U255 Rackmount Server Chassis, a testament to Shenzhen Sunmy Hardware's precision manufacturing capabilities. Designed for high-density server applications, this enclosure combines a compact footprint with robust durability. It is specifically engineered to house Mini-ITX motherboards, making it an ideal solution for edge computing, firewall appliances, and networking servers.
As a dedicated OEM/ODM partner, Sunmy offers full customization of this unit—from chassis depth and front panel layout to branding and material selection—ensuring the final product aligns perfectly with your market requirements.
Manufacturing Excellence: Sheet Metal & Stamping
Our server chassis are produced using advanced Sheet Metal & Stamping technologies, ensuring structural integrity and consistent quality across mass production.
🔩
Precision Stamping
The front panel features a precision-stamped honeycomb hexagonal mesh. This design maximizes airflow for thermal management while maintaining excellent electromagnetic interference (EMI) shielding.
🛡️
SGCC Material
Constructed from high-quality SGCC (Hot Dip Galvanized Steel), the chassis offers superior corrosion resistance and structural rigidity compared to standard SPCC steel.
⚙️
CNC Processing
Critical mounting points and I/O cutouts are processed via CNC punching and laser cutting to ensure strict tolerances (±0.1mm), guaranteeing a perfect fit for your internal components.
✨
Surface Finishing
Edges are deburred and hemmed to prevent injury during assembly, showcasing our attention to detail in the manufacturing process.
Key Specifications
Based on the provided technical data and visual inspection:
| Feature | Specification |
|---|---|
| Model | 1U255 (Standard 1U Height) |
| Form Factor | 19-Inch Rackmount (Horizontal) |
| Material | SGCC Sheet (Galvanized Steel) |
| Material Thickness | 1.0mm - 1.2mm (Customizable) |
| Motherboard Compatibility | Mini-ITX (170mm x 170mm) |
| Drive Bays | Internal mounting for 2.5" SSD/HDD |
| Cooling System | Passive Honeycomb Mesh / Support for internal 40mm fans |
| Front Interface | 2x USB 2.0, Power Button, Reset Button, LED Indicators (Power/HDD) |
| Power Supply Support | Flex ATX / 1U PSU (Customizable bracket) |
| Net Weight | Approx. 3.6 Kg |
Features & Advantages
- Optimized Thermal Design: The full-width mesh front bezel allows for uninhibited air intake, crucial for maintaining optimal operating temperatures in dense rack environments.
- Compact & Efficient: With a shallow depth (approx. 255mm), this chassis fits in short-depth racks and wall-mount cabinets, perfect for space-constrained installations.
- Modular Construction: The internal drive tray and power supply brackets are designed for easy assembly and maintenance.
- Custom Brand Identity: We support logo silkscreen printing, laser engraving, and custom box packaging to reinforce your brand identity.
- Robust I/O Panel: Includes industrial-grade switches and connectors to ensure longevity even with frequent operation.
Why Choose Sunmy Hardware?
- 1 One-Stop Solution: From CAD design and rapid prototyping to mass production and assembly.
- 2 Flexible Production: We handle orders ranging from small batch prototypes (High-Mix, Low-Volume) to large-scale mass production.
- 3 Quality Assurance: ISO-standard quality control ensures every chassis meets international dimensions and finish standards.
Frequently Asked Questions
Q1
Can we modify the depth of the chassis or the motherboard compatibility?
Yes, absolutely. As an OEM specialist, we can adjust the CAD design to extend the depth (e.g., to 300mm or 450mm) or modify standoffs to support Micro-ATX boards.
Q2
What is the MOQ for a custom modification of this 1U case?
For standard products with minor changes (like logo printing), our MOQ is flexible. For significant structural changes requiring new tooling, please contact our sales team for a tailored quote.
Q3
Does the chassis come with fans and a power supply?
The standard offering is the empty chassis (enclosure + cables + switches). However, we can source and install UL/CE-certified fans and power supplies as a turnkey solution upon request.
Q4
What is the typical lead time for production?
Sample prototyping typically takes 7–10 days. Mass production generally requires 25–30 days after drawing confirmation.
Q5
What surface finish options are available for the 1U255 chassis?
We offer multiple surface finishing options including powder coating, electroplating, anodizing, and raw SGCC galvanized finish. Custom RAL colors and brushed textures are also available based on your branding requirements.
Q6
Can the front I/O panel be customized with additional ports or a different layout?
Yes. The front panel I/O configuration is fully customizable. We can add USB 3.0 ports, additional LED indicators, audio jacks, or redesign the panel layout entirely to match your product specifications using our CNC punching and laser cutting processes.
