Product Description
Product Overview

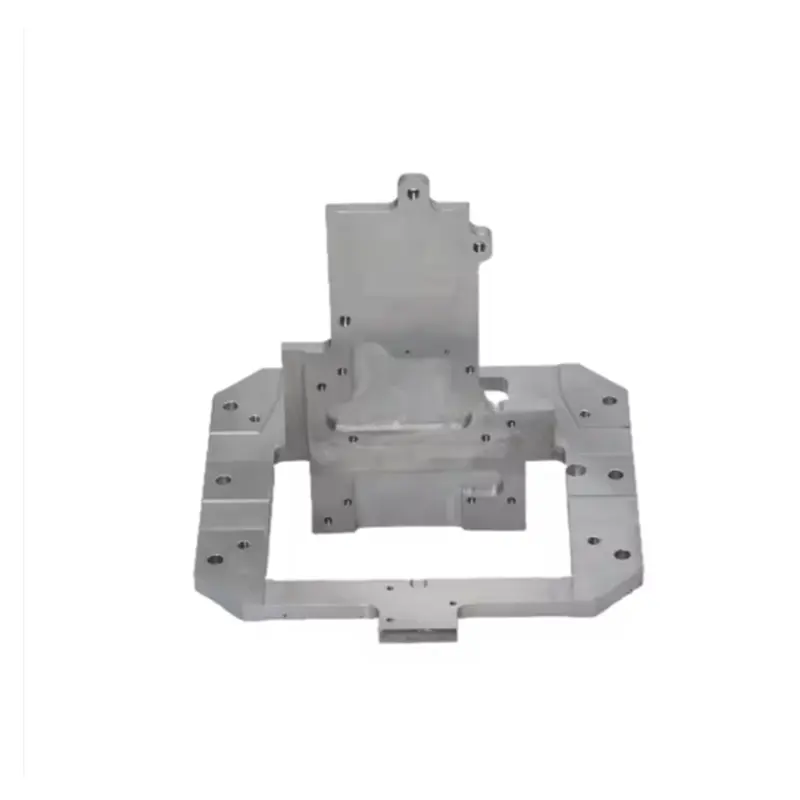

At Shenzhen Sunmy Hardware Co.,Ltd., we specialize in transforming complex engineering designs into tangible, high-performance reality. This Custom Metal Bracket exemplifies our capability in handling intricate geometries required by the Aerospace and Automotive sectors.
Engineered for structural rigidity and precise component alignment, this unit is manufactured using a hybrid approach of 3/4/5-Axis CNC Milling and Wire EDM (Electrical Discharge Machining). It is designed to serve as a critical mounting interface in high-stress environments where failure is not an option. Whether you require a prototype for fit-testing or mass production for assembly lines, Sunmy delivers with uncompromising accuracy.
Manufacturing Process & Insights
Our manufacturing approach for this aerospace-grade bracket combines advanced subtractive manufacturing technologies to achieve geometries that standard machining cannot:
Advanced CNC Milling
Utilizing state-of-the-art 3, 4, and 5-axis machining centers, we rapidly remove material to form the main structural body, ensuring perfect perpendicularity and flatness.
Wire EDM Precision
For intricate internal cutouts, square corners, and deep pockets visible in the design, we utilize Wire EDM. This non-contact thermal process cuts hard metals with extreme precision (±0.005mm) without inducing mechanical stress or thermal distortion.
Material Versatility
While the specific unit shown appears to be high-grade Aluminum or Stainless Steel, our facility is equipped to machine Titanium, Brass, Copper, and hardened alloys based on your specific mechanical requirements.
Key Specifications
| Feature | Specification |
| Product Name | Custom Precision CNC Machined Bracket / Frame |
| Machining Capabilities | CNC Milling, Turning, Drilling, Wire EDM, Laser Cutting |
| Material Options | Aluminum (6061/7075), Stainless Steel (304/316), Titanium, Brass, Alloy Steel |
| Tolerance Accuracy | Up to ±0.005mm (ISO 2768-m/f compliant) |
| Surface Finish | As Machined, Anodized, Bead Blasted, Passivated, or Custom Plating |
| Equipment | 3/4/5-Axis CNC Centers, Wire EDM Machines, CMM Inspection |
| File Formats Accepted | STEP, STP, IGS, XT, SolidWorks, PDF (2D) |
| Certification | ISO 9001 Certified Manufacturer |
| Origin | China |
Key Features & Advantages
Why partner with Shenzhen Sunmy for your critical components?
-
Complex Geometry Handling: Our integration of Wire EDM allows for internal sharp corners and deep slots that traditional milling tools cannot reach.
-
Aerospace-Grade Quality: We adhere to strict quality control protocols suitable for high-stakes industries like aerospace and automotive, ensuring high fatigue resistance and structural integrity.
-
Customization Flexibility (OEM/ODM): We do not just sell off-the-shelf parts; we offer full OEM/ODM services. We accept custom sizes, unique micro-features, and specific material requests.
-
Comprehensive Surface Treatment: From protective anodizing to improve corrosion resistance to chemical polishing for aesthetics, we handle the post-processing to deliver a ready-to-use part.
Applications
This precision bracket is engineered for industries demanding high reliability:
-
Aerospace: Avionics housing frames, structural mounting brackets, and sensor mounts.
-
Automotive: Engine components, customized chassis brackets, and transmission assembly parts.
-
Industrial Automation: Robot arm joints and high-precision fixture plates.
-
Medical Devices: Structural internal frames for diagnostic equipment.
Other Products
Premium Ergonomic Office Chair Nylon Armrest Component
Precision Custom Plastic Injection Molded Automotive Components & Housings
High-Precision White PBT Automotive Electrical Connector Housing
Custom Medical Grade Liquid Silicone Rubber (LSR) Components
Get a Fast, Technical Quote & Free DFM Review
Don't let tolerance stack-up delay your product launch. Submit your project details, and our engineering team will evaluate your design for manufacturability before the first cut.
Technical FAQ
Q1: How do you ensure the precision of complex parts like this bracket?
A1: We utilize CMM (Coordinate Measuring Machines) to verify dimensions against your CAD data. For parts requiring Wire EDM, the inherent accuracy of the process ensures tolerances as tight as ±0.005mm are consistently met.
Q2: Can you handle low-volume orders for R&D?
A2: Yes, we support the full product lifecycle. We accept low-volume prototypes (MOQ: 1 piece) to help you validate your design before moving to mass production.
Q3: What materials are best for this type of bracket?
A3: For aerospace, we typically recommend Aluminum 7075 for its high strength-to-weight ratio. For automotive or high-heat applications, Stainless Steel 304/316 is preferred. We can advise based on your specific use case.
Q4: What is the typical lead time?
A4: Standard lead time for samples is 3-7 days depending on complexity and surface finish requirements. Production runs are scheduled efficiently to meet your deadlines.
Q5: What surface finishes can you provide for custom brackets?
A5: We offer a comprehensive range of surface finishes including As Machined, Anodized, Bead Blasted, Passivated, and Custom Plating to enhance corrosion resistance and aesthetics.
Q6: Is Shenzhen Sunmy Hardware an ISO-certified manufacturer?
A6: Yes, we are an ISO 9001 Certified Manufacturer. We adhere strictly to international quality standards from material sourcing to final inspection.
