High-Quality Custom Precision Injection Molded Plastic Cable Spool & Wire Bobbin Exporters, Factory
Product Description
Product Overview

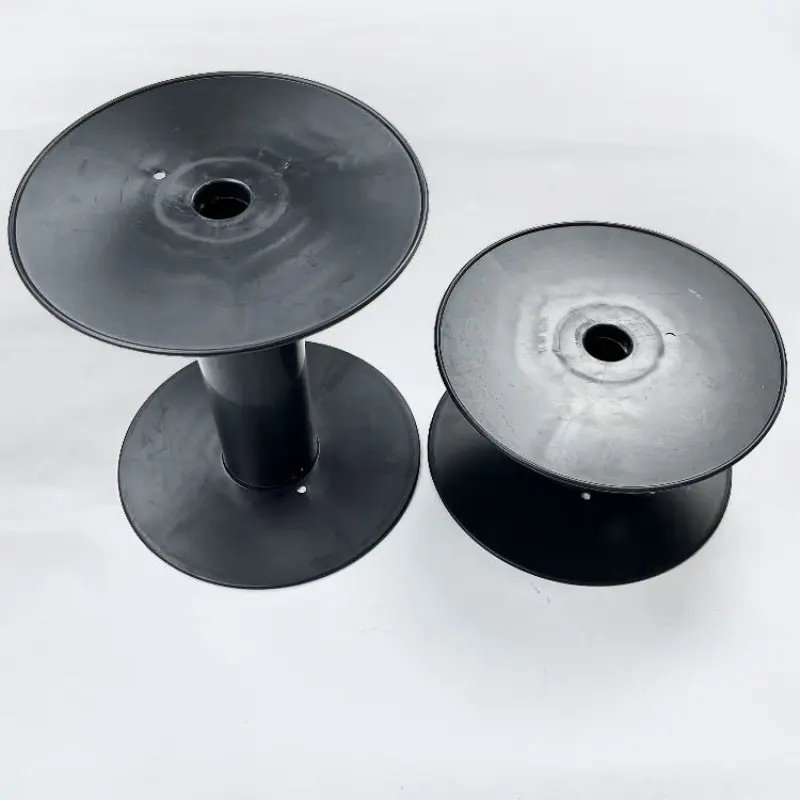

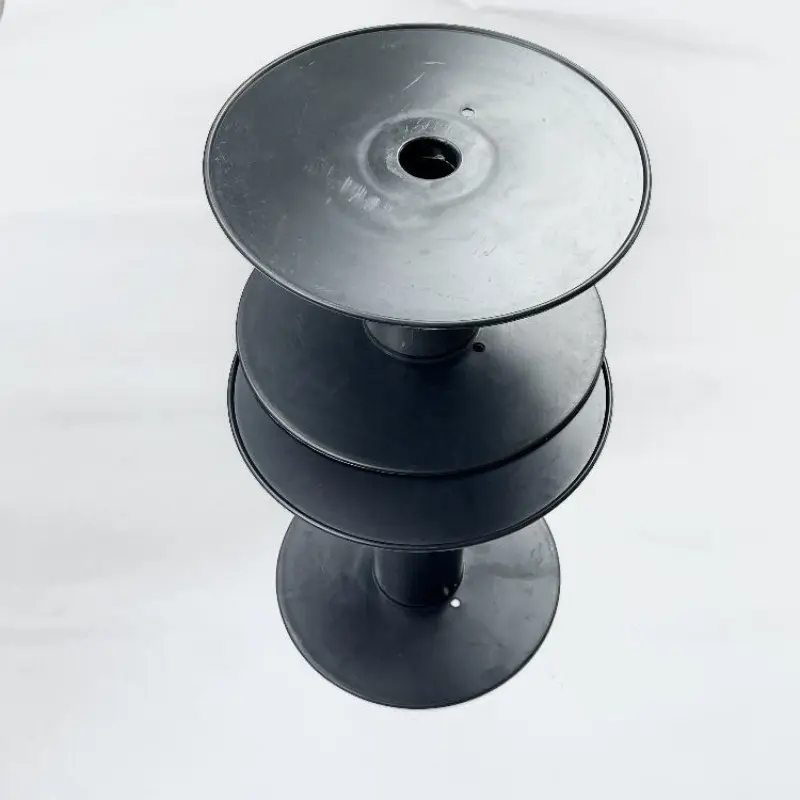

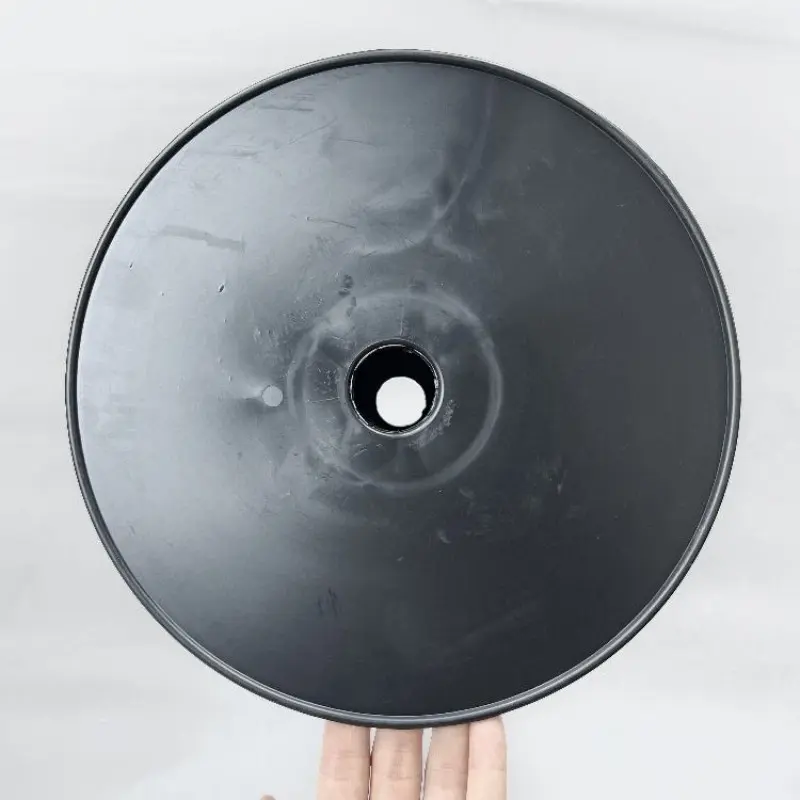

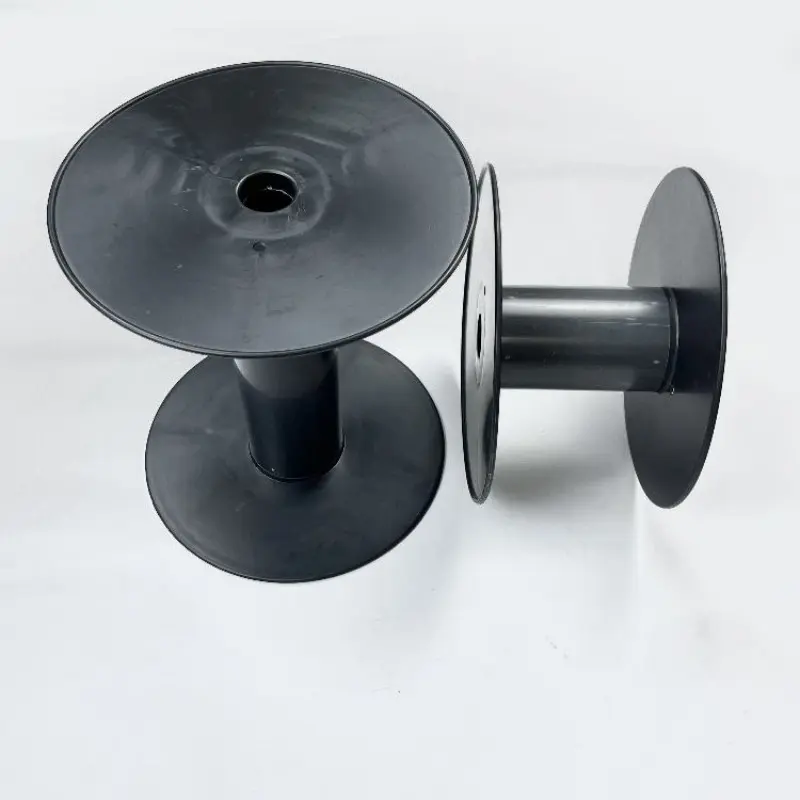

Shenzhen Sunmy Hardware Co., Ltd. manufactures custom injection molded plastic cable spools, wire bobbins and winding reels for take-up, payoff, storage and transport. The illustrated designs feature two circular flanges, a cylindrical winding barrel, a central arbor bore and small flange openings, with different barrel lengths shown. We develop each product around your equipment interface, winding material and handling requirements rather than restricting you to a fixed catalog size. Flange diameter, barrel diameter, winding width, bore geometry, material, color and identification can all be customized from drawings or sample details. Applications can include wire, cable, optical fiber, filament and tubing winding, with the final design and acceptance requirements agreed for each project.
Manufacturing & Tooling Engineering Insights
- Custom Tooling & Construction Review: Tooling is developed around the approved spool geometry, resin and order volume. Single- or multi-cavity layouts, runner arrangements and suitable mold steels are selected during review. The quotation identifies the molded components, any required joining operations and tooling scope before mold manufacture.
- DFM, Filling & Cooling Review: We review flange and barrel wall transitions, gate locations, venting, cooling and ejection before tooling. Any required mold-flow simulation is defined in the project scope. Flange flatness, shrinkage and appearance limits are agreed before sample approval.
- Arbor Fit, Runout & Winding Validation: The arbor bore, flange faces and barrel are reviewed against the winding-machine interface. Dimensional checks and radial or axial runout requirements are specified separately from any balancing test. For powered winding, confirm the intended speed, winding tension and loaded condition before approving the sample and inspection plan.
- Application-Specific Resin Selection: Material options include ABS, HIPS, PP, HDPE and engineering plastics selected for the specified load and environment. UV-stabilized, reinforced, antistatic or flame-retardant grades can be evaluated on request. The exact grade, required properties and supporting documentation are agreed individually; black color does not identify the resin or an ESD rating.
Key Technical Specifications
Fully customizable to your drawings or sample requirements. The table lists design and material options, not fixed catalog sizes. Final specifications and inspection criteria are agreed during engineering review.
| Technical Parameter | Custom Specification / Project Options |
|---|---|
| Manufacturing Process | Plastic injection molding with custom tooling; component layout and any joining or secondary operations agreed for the design. |
| Material Options | ABS, HIPS, PP, HDPE, PC, PA6/PA66, glass-filled grades or POM. Exact resin grade selected for the application. |
| Flange Outer Diameter (OD) | Custom flange diameter, thickness, rim and profile. Required sizes assessed during tooling review, not limited to catalog dimensions. |
| Barrel Diameter & Traverse | Custom barrel diameter and clear winding width between flange faces. State overall width, winding material, load and capacity separately. |
| Arbor Bore & Flange Openings | Custom bore fit, keyed/hex/spline options, drive-pin holes and wire-start openings to the approved equipment interface drawing. |
| Dimensional Tolerances | Bore, flange and barrel tolerances, datums and inspection conditions per approved drawing; ISO 20457 where specified by the customer. |
| Surface Finish | Molded matte, textured or gloss finish to an approved sample. Specify gate vestige, flash and wire-contact edge requirements. |
| Color Options | Black as illustrated, or custom RAL/Pantone reference colors; final appearance agreed for the selected resin. |
| Tooling Steel & Life | P20, 718H, S136, NAK80 or suitable alternatives. Cavity count, target tool life and maintenance agreed in the tooling quotation. |
| Branding & Identification | Molded raised/recessed logos, cavity identification and pad printing. Artwork, position and packaging agreed to customer requirements. |
| Quality Documentation | Agreed inspection records and resin identification; applicable RoHS/REACH documentation reviewed for the selected material and customer requirements. |
| Testing & Verification | Dimensional, arbor-fit and edge checks per inspection plan. Runout, balance, winding-load or drop tests agreed separately with acceptance criteria. |
Core Engineering Advantages & Customization Capabilities
Full Customization from Drawings or Samples
We can customize the flange diameter and thickness, barrel dimensions, winding width, arbor fit, hole layout, material and color. Existing sizes are not design limits. For sample-based development, any dimensions, tolerances or operating requirements not evident from the sample are agreed before tooling.
Flange & Barrel Design for the Intended Load
Reinforcement ribs, rim profiles, wall sections and flange-to-barrel transitions can be tailored to the required winding load and handling conditions. Agree the acceptance criteria for flange deflection and joint integrity, then validate the proposed construction with loaded trials.
Equipment Interface Before Production
The sample approval plan focuses on arbor engagement, drive-hole position, available winding width and clearance to the machine. Specify any runout or balance requirement independently. An approved fit check does not replace validation at the intended winding speed and load.
Prototype-to-Production Support
Prototype methods and production tooling are evaluated against the required quantities and validation plan. Prototype parts can support fit checks, while molding trials confirm the selected resin and production geometry. Prototype, tooling, T1 sample and batch-delivery schedules are quoted separately for the approved scope.
One-Stop Multi-Process Coordination
Alongside injection molding, Sunmy coordinates CNC machining, turning, metal casting, stamping and finishing for related hubs, sleeves and mounting components where required. Buyers receive one project contact for drawings, interfaces and delivery coordination; the quotation defines the included parts and operations.
Technical FAQ (B2B Procurement & Engineering)
Q1: Can you customize the spool dimensions and arbor interface to our winding equipment?
Yes. We manufacture to customer requirements rather than fixed catalog dimensions. Specify the flange and barrel diameters, clear winding width, overall width, bore fit and drive-hole layout. Send drawings or a reference sample with the machine interface details so the custom geometry and acceptance criteria can be agreed.
Q2: What information is needed for a tooling review and quotation?
Provide a STEP or IGES model and a dimensioned PDF/DWG drawing, or sample details where drawings are unavailable. Include the resin requirement, winding material, working load, speed, first-order quantity, expected repeat volume and any required testing. Identify critical dimensions and cosmetic requirements separately.
Q3: How are flange warpage and winding performance checked?
The review addresses wall transitions, gating, cooling, reinforcement and any assembly joints. Trial parts are checked against agreed flange-face, barrel and bore requirements. Where loaded winding, runout or balancing tests are required, define the equipment, mounting method, speed, load and acceptance limits before production approval.
Q4: What are the MOQ, tooling lead time and sample approval steps?
Prototype, pilot and repeat-production quantities are evaluated individually. MOQ and lead time depend on part size, resin, mold design, any assembly operations and validation scope. The quotation sets separate milestones for tooling, T1 samples, agreed inspection documents and production release. Send your drawing or sample details and quantities to request a project-specific offer.
Q5: What resin materials and property options are available for custom spools?
Material options include ABS, HIPS, PP, HDPE, PC, PA6/PA66, POM, and glass-filled grades. Depending on application requirements, UV-stabilized, reinforced, antistatic, or flame-retardant resin grades can be selected and verified with RoHS/REACH compliance documentation.
Q6: Can surface finishes and custom branding/logos be added to the molded components?
Yes. We support molded matte, textured, or gloss surface finishes. Customization options also include molded raised or recessed logos, cavity identification, pad printing, and custom RAL/Pantone colors matched to your project specification.
