Product Description
Product Overview

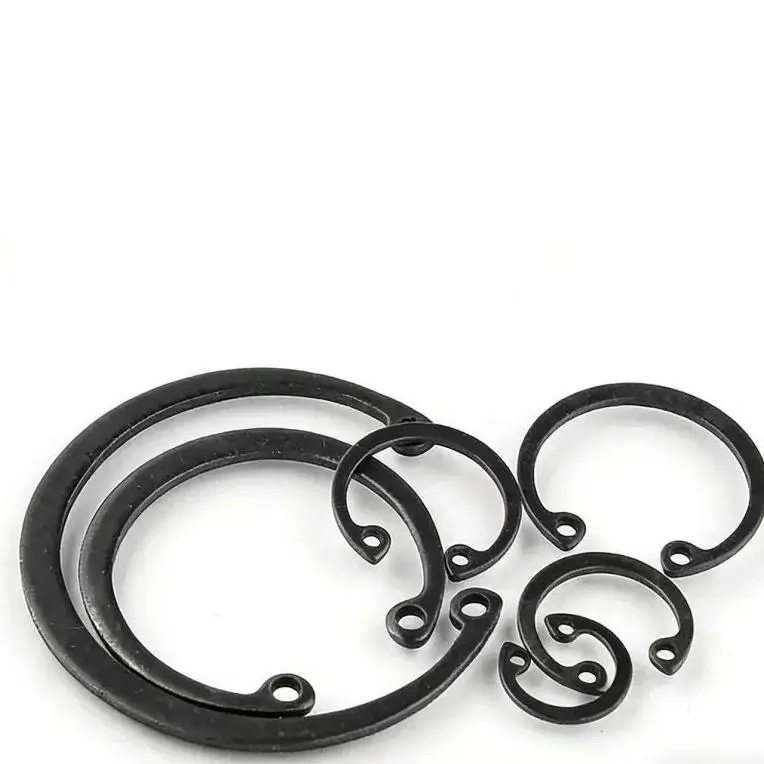

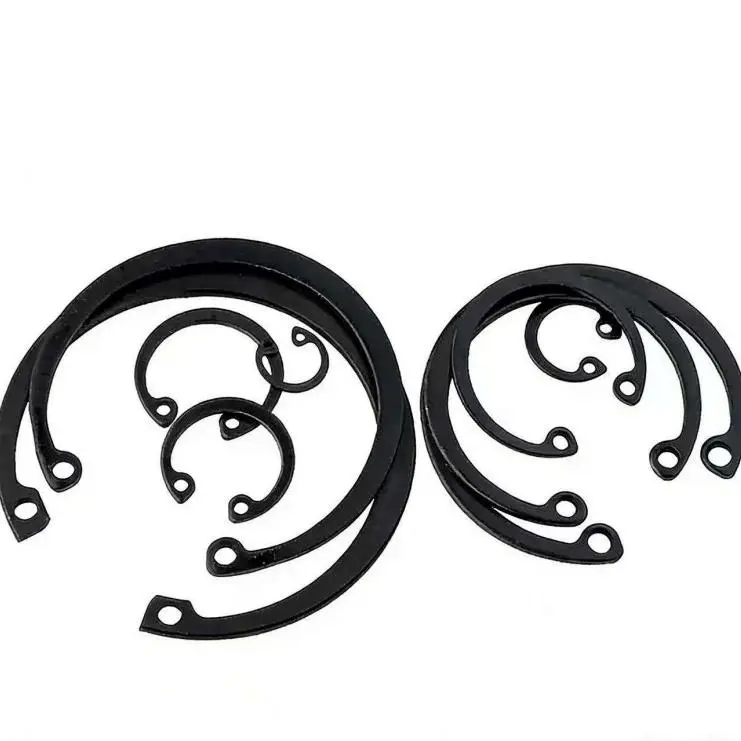

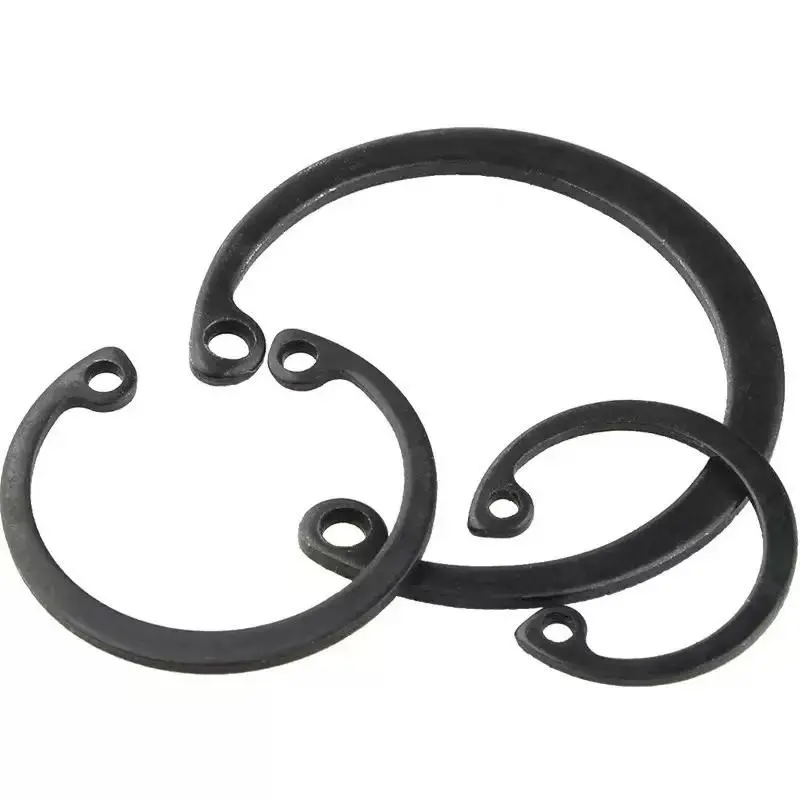

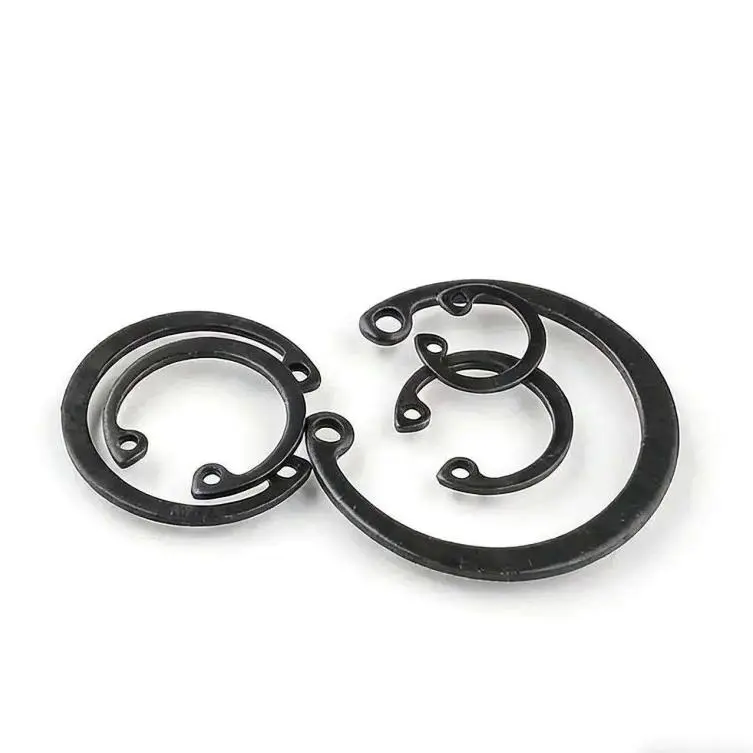

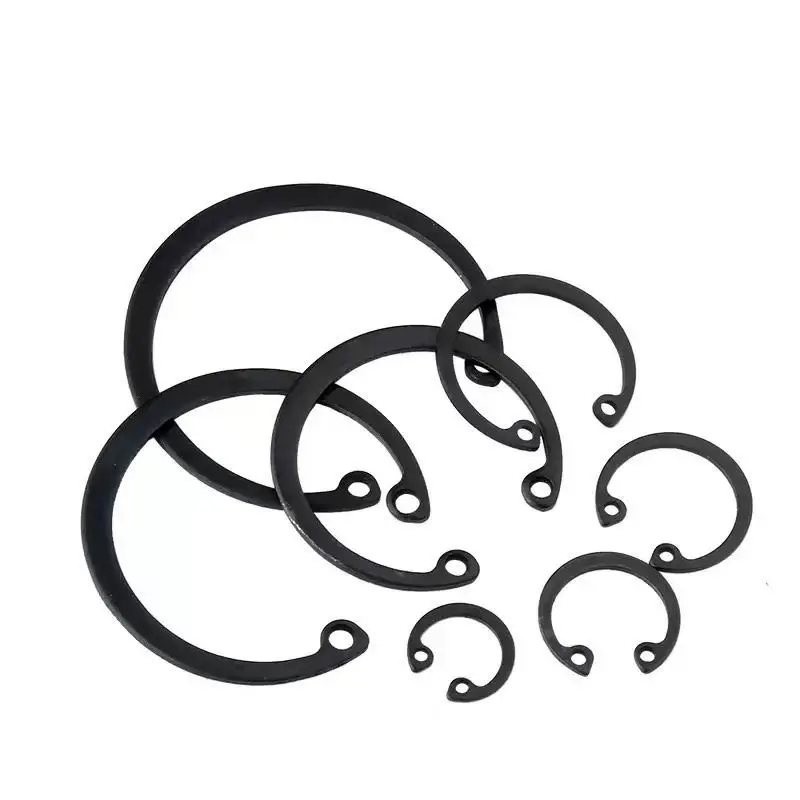

Shenzhen Sunmy Hardware Co.,Ltd. offers high-precision DIN 471 C-Type External Retaining Rings (Circlips), engineered to securely fasten components onto shafts and effectively prevent axial displacement. Manufactured using professional metal stamping technology, these C-rings exhibit excellent elastic deformation recovery and extreme load-bearing capacity. They are widely specified across rigorous industrial sectors including automotive engineering, medical instruments, food & beverage processing, and heavy-duty industrial machinery.
Manufacturing Process & Engineering Insights
Our high-performance retaining rings are fabricated via specialized Sheet Metal & Stamping processes, utilizing precision progressive dies on high-speed automated punch presses. The manufacturing architecture follows advanced industrial workflows:
-
Material Selection: High-grade raw materials including 65Mn Manganese Steel and premium Stainless Steel (SUS304/316) are selected and strictly verified for grain structure and structural integrity.
-
Precision Stamping: Advanced multi-stage progressive stamping ensures ultra-precise tolerances and flawless geometry for consistent spring tension.
-
Thermal Hardening: Controlled atmosphere heat treatment cycles optimize the microstructure, achieving a critical hardness rating of 45-55 HRC for superior fatigue and yield strength.
-
Surface Refining: Automated mechanical tumbling eliminates all micro-burrs and sharp edges to safeguard components and technicians during assembly.
-
Advanced Coating: Specialized black zinc plating or black oxidation treatment is applied, providing an durable anti-corrosion barrier and an aesthetic matte finish.
Technical Specifications
| Product Attribute | Technical Specification |
|---|---|
| Standard Compliance | DIN 471 / Chinese Standard Compliant |
| Circlip Type / Shape | C-Type / External Retaining Ring |
| Manufacturing Process | Sheet Metal & Precision Stamping |
| Material Options | 65Mn Manganese Steel, Carbon Steel, SUS304/SUS316 Stainless Steel |
| Thickness Range | 0.3mm – 3.0mm (Fully Customizable) |
| Hardness Rating | 45 – 55 HRC |
| Surface Treatment | Black Zinc Plating, Black Oxidation (Fasting), Plain, Phosphating |
| Color Options | Deep Black, Matte Silver |
| Application Scope | Healthcare Devices, Food & Beverage Equipment, Automotive, General Industry, Mining |
| Customization Support | 100% Full OEM / ODM / OBM (Customizable dimensions based on technical blueprints) |
| Packaging Layout | Protective Sealed Plastic Bags + Export Cartons + Heavy-Duty Solid Pallets |
| Quality Control | 100% Comprehensive Optical & Manual Inspection Before Shipment |
Key Features & Strategic Advantages
-
Strict Standard Compliance: Fully compliant with international DIN 471 technical protocols, ensuring precise seating inside standard grooves and flawless component containment.
-
Outstanding Elasticity & Fatigue Life: Formed from high-grade 65Mn steel with balanced carbon and manganese ratios, providing robust springback characteristics and resisting deformation under heavy cyclical loads.
-
Excellent Corrosion Resistance: The specialized black zinc or oxide treatment guarantees excellent salt spray test performance, shielding the metal core from chemical oxidation and damp warehouse environments.
-
100% Full Customization (OEM/ODM): Backed by state-of-the-art progressive press tooling, Shenzhen Sunmy Hardware provides 100% tailor-made dimensions, material grades, and surface treatments suited for bespoke blueprints.
-
B2B Supply Chain Reliability: Operating high-speed precision stamping infrastructure allows us to fulfill large-scale orders with predictable delivery schedules and uncompromised quality uniformity.
Other Products
Premium Ergonomic Office Chair Nylon Armrest Component
Precision Custom Plastic Injection Molded Automotive Components & Housings
High-Precision White PBT Automotive Electrical Connector Housing
Custom Medical Grade Liquid Silicone Rubber (LSR) Components
Get a Fast, Technical Quote & Free DFM Review
Don't let tolerance stack-up delay your product launch. Submit your project details, and our engineering team will evaluate your design for manufacturability before the first cut.
Technical FAQ
Q1: What is the Minimum Order Quantity (MOQ) for custom-sized retaining rings?
A1: For standard catalog sizes, we support flexible B2B testing quantities. For entirely customized dimensions requiring new progressive stamping dies, our standard production MOQ typically ranges between 10,000 to 50,000 pieces, depending on the material gauge and dimensions.
Q2: How does your facility ensure consistent hardness and precise tolerances across batches?
A2: We execute a comprehensive quality control program. Hardness is verified using calibrated digital Rockwell testers post-heat-treatment to ensure a consistent 45-55 HRC. Dimensional tolerances are verified using high-precision optical sorting machinery and automated video measuring systems before final packaging.
Q3: What is the standard production and shipping lead time?
A3: For current available open-tooling configurations, manufacturing takes 7-15 business days. For customized OEM/ODM projects requiring brand new stamping tools, the tool development phase takes 10-15 days, followed by mass production within 15-20 days.
Q4: Do you provide comprehensive material and international environmental compliance documentation?
A4: Yes, every commercial shipment from Shenzhen Sunmy Hardware can be accompanied by an official Material Test Report (MTR), along with certified SGS reports verifying full compliance with RoHS and REACH standards.
Q5: What surface treatments are available for the retaining rings?
A5: We offer specialized Black Zinc Plating, Black Oxidation (Fasting), Plain, and Phosphating treatments to provide a durable anti-corrosion barrier and an aesthetic deep black or matte silver finish.
Q6: What materials are used in manufacturing the retaining rings?
A6: We select high-grade raw materials including 65Mn Manganese Steel, Carbon Steel, and premium Stainless Steel (SUS304/SUS316), which are strictly verified for structural integrity before precision stamping.
