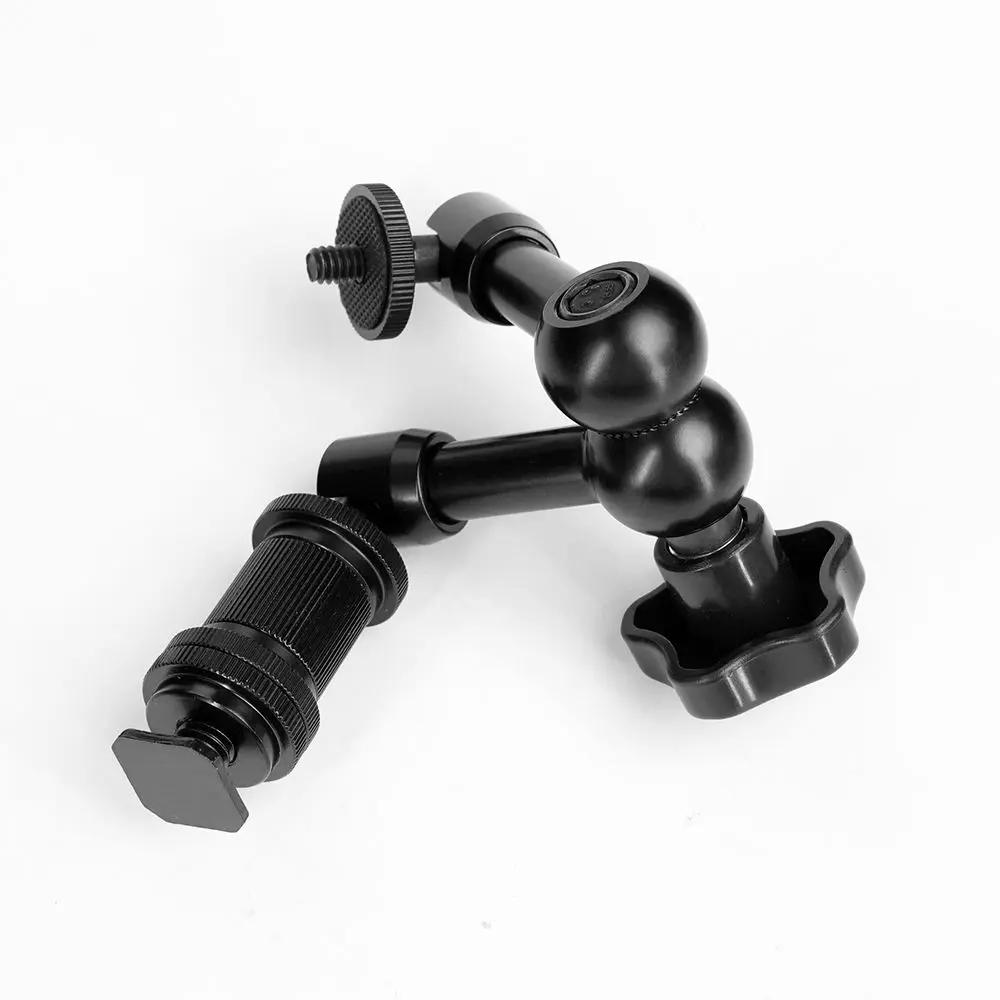

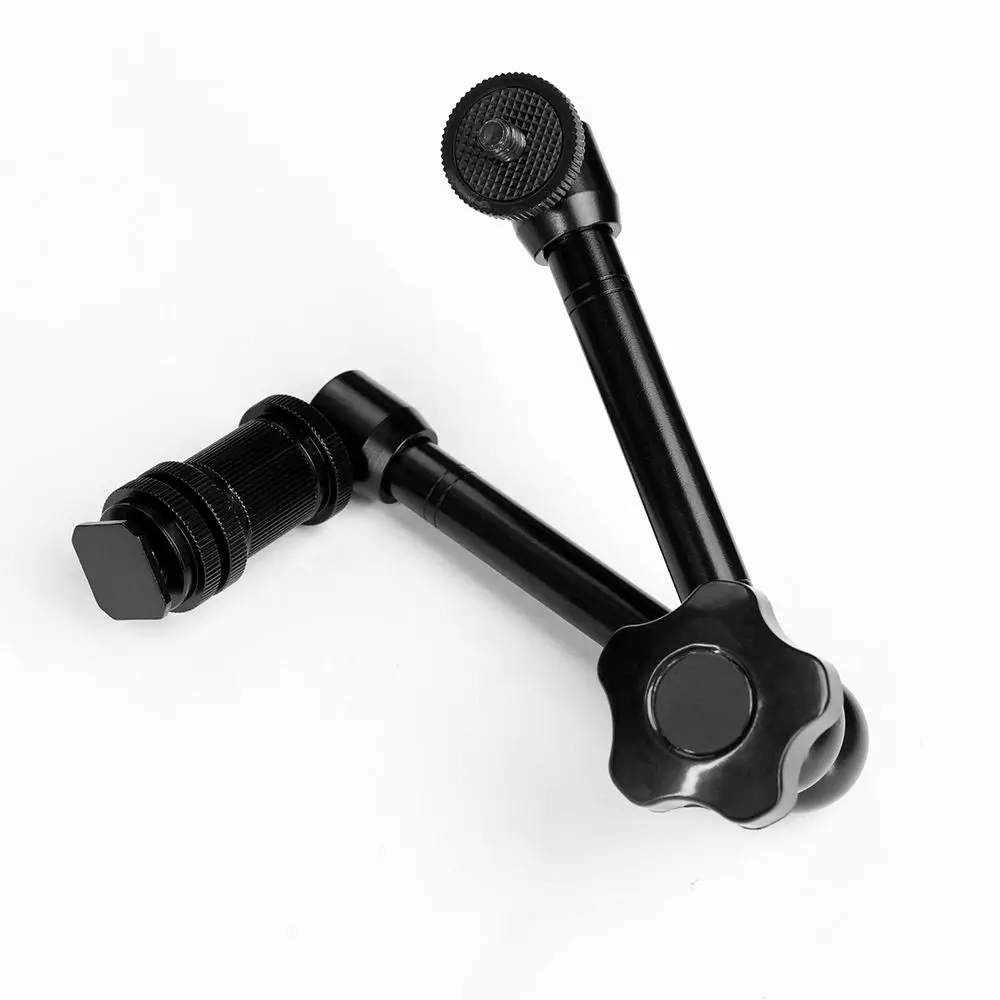

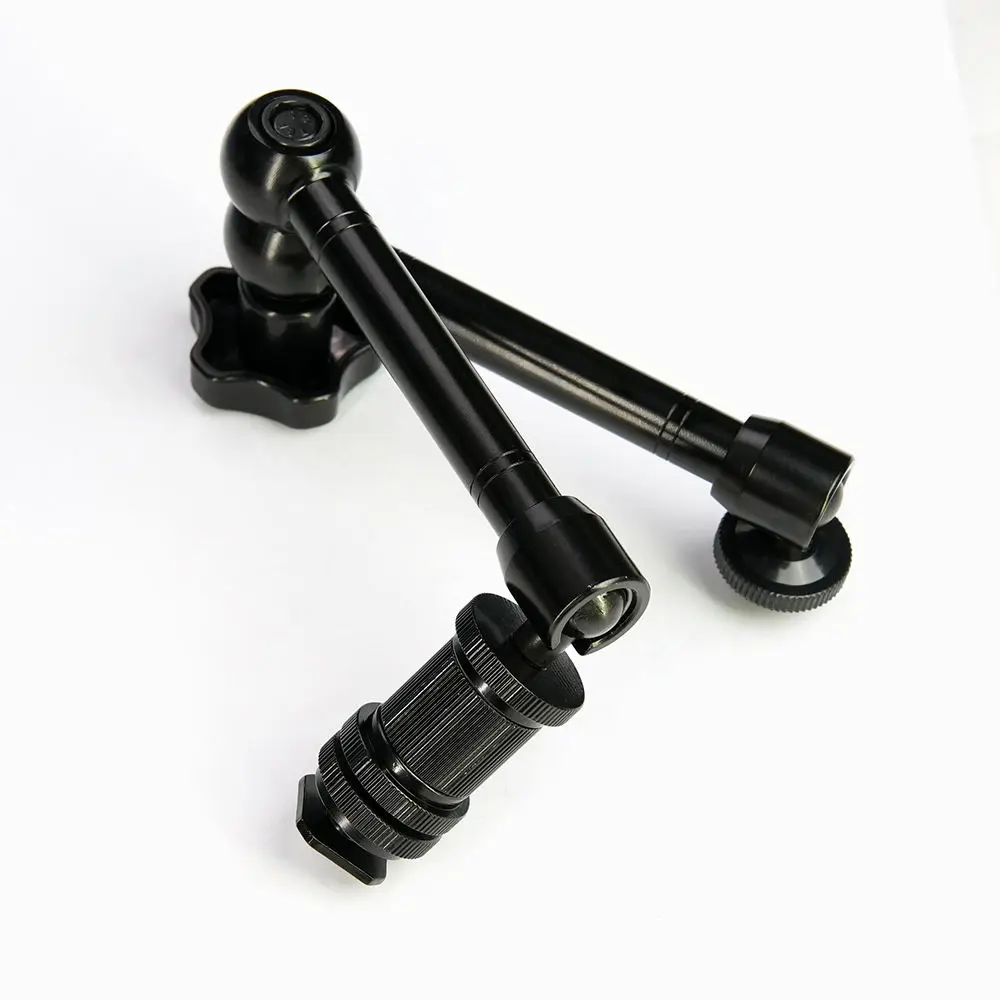

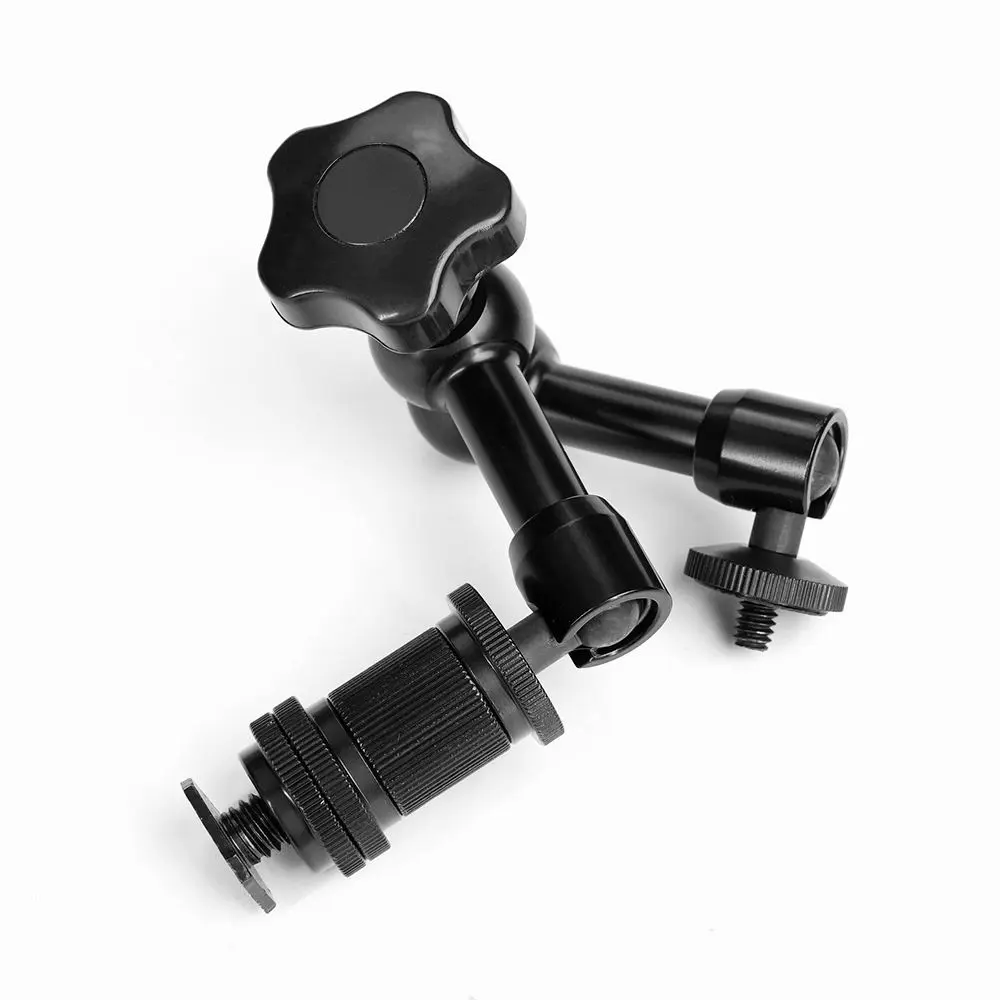

High-Quality 7-Inch CNC Aluminum Articulating Magic Arm for Camera & Monitor Products, Factory
Product Description
Product Overview
The Sunmy 7-Inch CNC Aluminum Articulating Magic Arm is a professional-grade, multi-functional rig mount designed for high-end cinematography, broadcasting, and studio photography setups. Engineered with dual 360-degree universal ball heads and a robust single-point central locking mechanism, this universal magic arm ensures stable, highly flexible angle positioning for external monitors, LED fill lights, microphones, wireless transmitters, and field recorders. It serves as an essential accessory for professional camera cages and studio ecosystems requiring high load capacities and long-term durability.
Manufacturing Process & Quality Engineering
At Shenzhen Sunmy Hardware, exceptional product performance begins with precision manufacturing. This magic arm is fully crafted using advanced Computer Numerical Control (CNC) Machining and turning technology. Starting from raw premium-grade solid aluminum alloy billets, every single shell, clamp, and arm section is milled to strict engineering tolerances within ±0.02mm. This ultra-high precision eliminates loose joints and guarantees seamless multi-axis articulation.
To ensure a slip-free locking mechanism capable of handling heavy rigs, the dual ball-joint studs are machined from high-tensile carbon steel rather than softer zinc/aluminum alloys. The entire aluminum assembly undergoes a heavy-duty industrial anodization process. This chemical treatment forms a hardened matte black layer that prevents scratches, resists corrosion, and completely eliminates reflections in professional studio environments, meeting the rigorous standards of international B2B buyers.
Key Specifications
| Parameter | Technical Specification |
|---|---|
| Product Name | 7-Inch CNC Aluminum Articulating Magic Arm |
| Manufacturing Process | High-Precision CNC Machining & Lathe Turning |
| Primary Material | Aerospace-Grade Aluminum Alloy + Heavy-Duty Carbon Steel Core |
| Surface Finish | Premium Industrial Matte Black Anodization (Anti-Reflective) |
| Mounting Interfaces | 1/4"-20 Standard Threaded Screw & Removable Cold Shoe Mount |
| Articulation Capacity | Dual 360° Universal Swivel Ball Joints |
| Locking System | Central Ergonomic Wing-Nut Single-Lock Mechanism |
| Customization Service | Full OEM / ODM Support (Custom Lengths, Threads, Finishes, Logos) |
| Dimensional Tolerance | ±0.02 mm |
| Quality Inspection | 100% Effective Locking & Structural Verification Performance |
Key Features & Business Advantages
Machined entirely from premium aluminum block, delivering superior structural rigidity, ultra-lightweight performance, and consistent structural integrity compared to cheaper die-cast products.
A single ergonomic central wing nut tightens and locks both ball heads simultaneously. Engineered to deliver 100% effective, zero-slip locking even under heavy continuous payloads.
Dual-axis universal ball joints allow camera operators to seamlessly position monitors, LED arrays, or microphones at any requested angle with instantaneous adjustment.
We specialize in tailored hardware development. Clients can customize arm lengths, specify interface configurations (e.g., 3/8" screws, ARRI locating pins, NATO clamps), select colors, and request laser engraving.
Backed by Shenzhen Sunmy Hardware’s advanced factory infrastructure, we guarantee highly scalable mass production, strict ISO-compliant quality control, and dependable international lead times.
Technical FAQ for Global Buyers

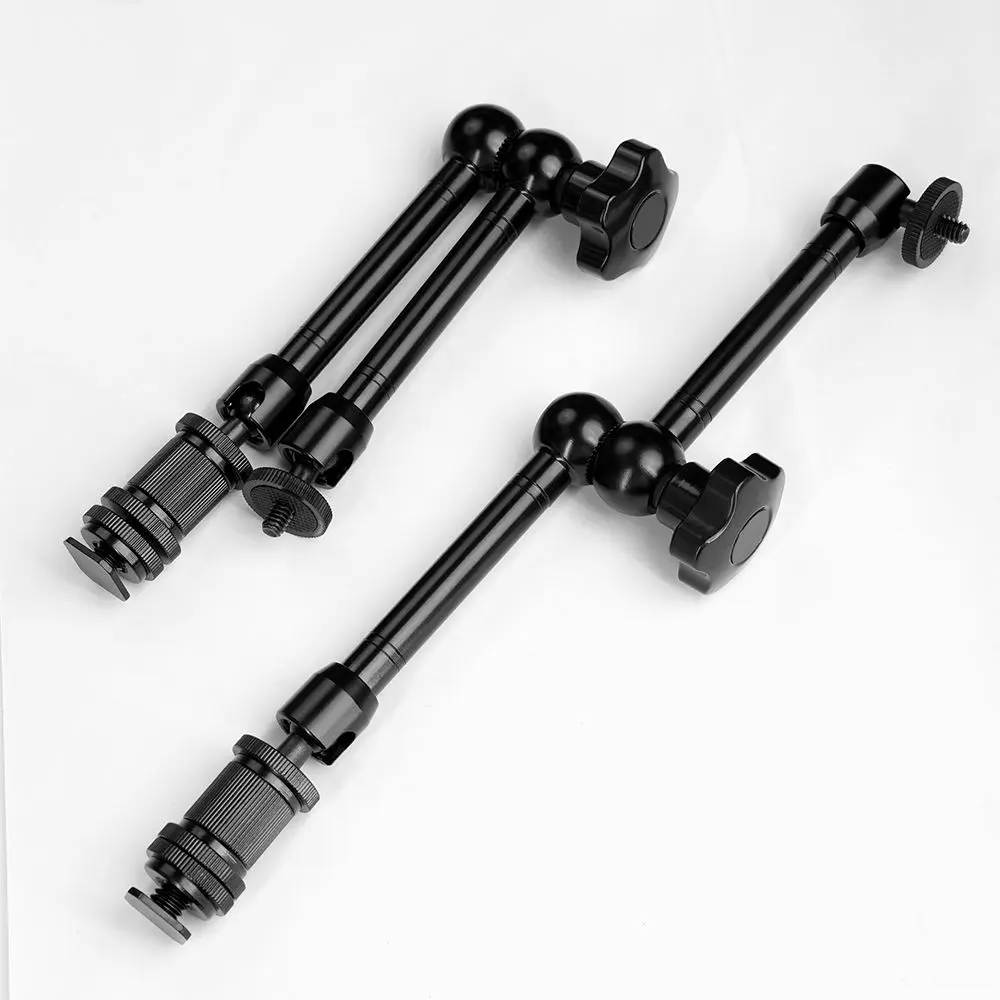

As a direct manufacturer, we offer comprehensive customization to match your product ecosystem. We can alter the overall length (e.g., 5", 7", 9", or 11"), modify interface types (such as changing to 3/8"-16 threads, adding ARRI locating pins, or integrated NATO rail clamps), provide custom anodization colors (such as deep red, cobalt blue, or tactical gray), and laser-engrave your private brand logo on the components.
Our precise CNC milling maintains tight tolerances of ±0.02mm, ensuring the ball heads and sockets have a flawless contact surface area. Additionally, we use high-strength carbon steel for the inner ball studs instead of standard aluminum. This hybrid material composition guarantees that the central clamping mechanism delivers persistent, non-deforming, 100% effective locking force under continuous professional use.
For custom OEM/ODM production runs, our standard MOQ is 500 units per batch. Sample engineering and prototyping require approximately 7–10 working days. Mass production orders typically take 20–30 days, depending on customization complexity and order volume.
The standard model comes equipped with dual 1/4"-20 threaded screws on both ends alongside a removable cold shoe adapter mount, making it instantly compatible with most camera cages, field monitors, LED panels, and studio rigs.
Every production batch undergoes 100% structural verification and locking force testing. We verify dimensional tolerances within ±0.02mm and conduct payload endurance testing to ensure zero slip articulation under extreme studio working conditions.
The industrial-grade chemical anodization forms an anti-reflective, hardened protective coating. It resists scratches, prevents metal oxidation/corrosion in humid environments, and eliminates unwanted light reflections on film sets.
