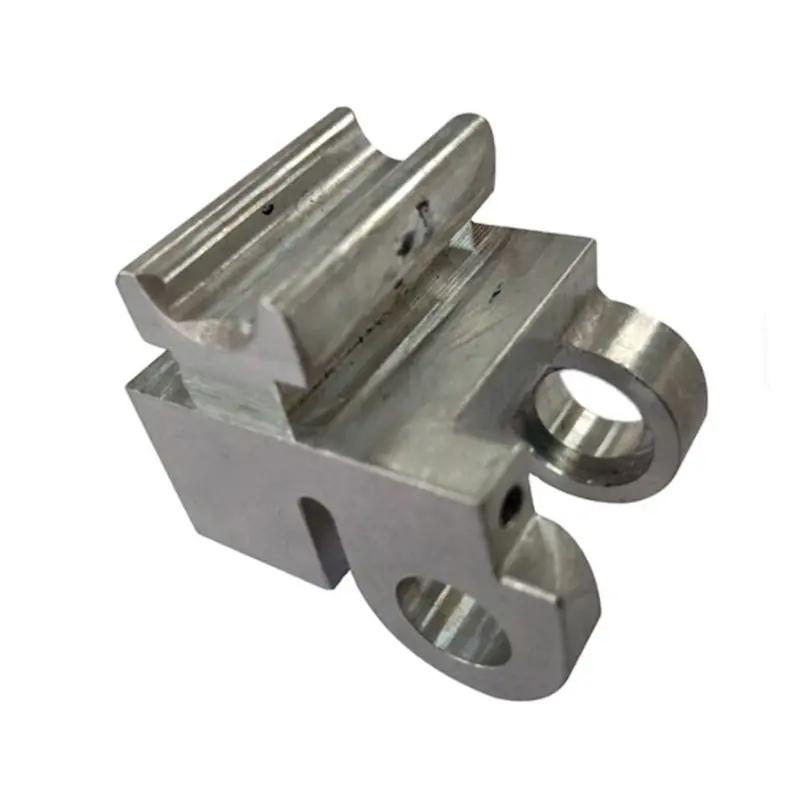

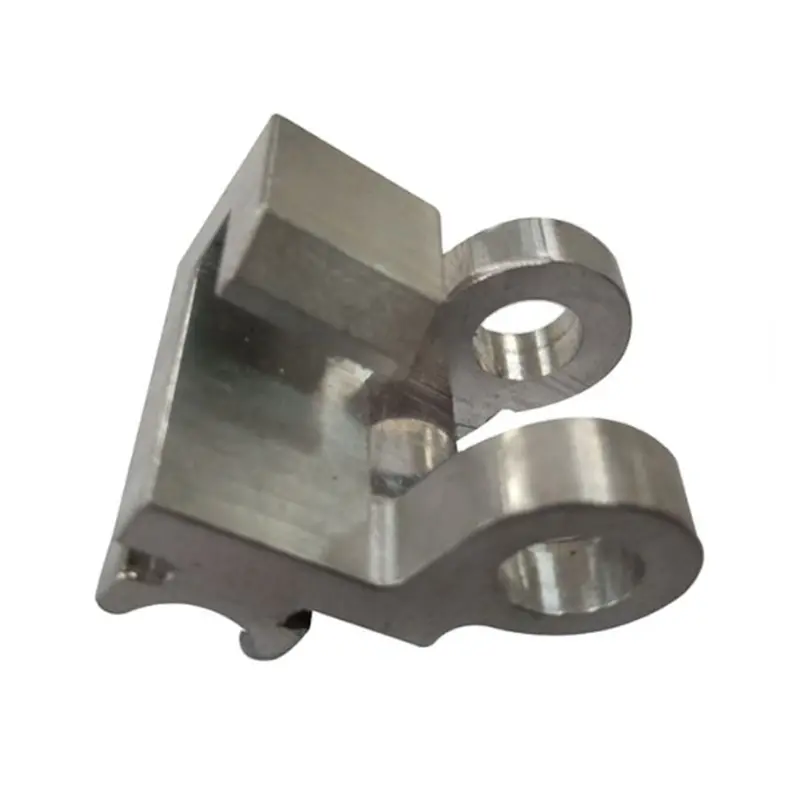

Custom Precision CNC Machined Aluminum Hinge Assembly Structural Connector China Supplier Manufacturer OEM Service

1. Product Overview

Item Name: Custom Precision CNC Machined Aluminum Hinge Assembly / Structural Connector

Category: CNC Machining Services / Industrial Hardware / Custom Hinges

Unlock the potential of your engineering designs with Shenzhen Sunmy Hardware Co., Ltd.'s bespoke manufacturing services. This product showcases our capability to produce complex, high-load bearing hinge assemblies and structural connectors.

Designed for robust industrial applications—ranging from automation equipment and automotive components to aerospace fixtures—this hinge assembly demonstrates our expertise in combining multi-axis CNC milling with precision assembly. Whether you need a rapid prototype or mass production, Sunmy provides a seamless "One-Stop" solution from blueprint to finished product.

2. Manufacturing Process & Engineering Insights

At Sunmy Hardware, founded in 2016 in Shenzhen, we combine seasoned craftsmanship with advanced technology. Based on the visual analysis of this component, our manufacturing process ensures structural integrity and mechanical fluidity:

Precision CNC Milling & Turning

The complex geometry of the knuckles and slots is achieved using advanced 3-axis and 5-axis CNC machines. This ensures perfectly perpendicular alignment for smooth hinge movement.

Tight Tolerance Control

As per our quality standards, we achieve strictly controlled tolerances of ±0.02mm. This precision ensures that the pin fits snugly without play, providing a premium mechanical feel and extended lifecycle.

Material Versatility

While this sample features Aluminum Alloy (likely 6061 or 7075 for strength-to-weight ratio), we can manufacture this design in Stainless Steel, Brass, or Zinc based on your load-bearing requirements.

Assembly & Finishing

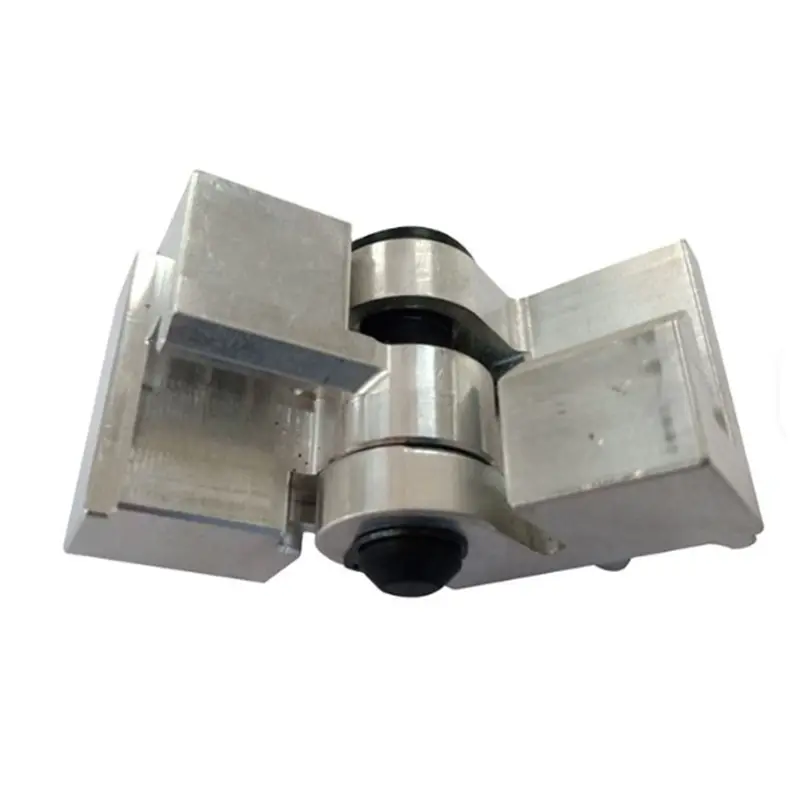

We don't just make parts; we deliver assemblies. This unit includes precision pin insertion and bushing installation, delivered ready for integration into your final product.

3. Key Specifications

Feature	Specification Details
Manufacturer	Shenzhen Sunmy Hardware Co., Ltd. (Est. 2016)
Origin	Guangdong, China (Mainland)
Material Options	Aluminum Alloy: 6061, 6063, 7075, ADC12, A380 Stainless Steel: 303, 304, 316 Others: Brass, Copper, Zinc Alloy
Processing Method	CNC Machining (Milling/Turning), Rapid Prototyping. (Note: Die Casting is available for high-volume orders)
Dimensions	Custom-made to client drawings (DWG, DXF, IGS, STEP, X_T)
Tolerance	±0.02mm (ISO 2768-m Standard)
Surface Finish	Sandblasting, Anodizing (Clear/Black/Color), Polishing, Powder Coating, Plating (Zinc/Nickel/Chrome)
Quality Certification	ISO 9001:2015 Certified
Testing Equipment	CMM (Coordinate Measuring Machine), X-Ray Flaw Detection, Salt Spray Test, Roughness Tester

4. Key Features & Advantages

◎ Engineering Excellence Our ability to machine complex undercuts and precise bore alignments ensures that our hinges and connectors operate smoothly under heavy loads without binding.
◎ Comprehensive Surface Treatment From maximizing corrosion resistance with Salt Spray tested anodizing (up to 96 hours) to aesthetic finishing for consumer-facing parts, we ensure the part looks as good as it functions.
◎ Scalable Production Prototyping: We offer Rapid Prototyping (CNC) to validate your design quickly.
Mass Production: For larger orders, we can transition to Die Casting (ADC12/A380) to significantly reduce unit costs while maintaining quality.
◎ Rigorous Quality Control Every batch undergoes 100% critical dimension inspection and visual checks before shipping. We provide inspection reports and material certifications upon request.
◎ Shenzhen Speed Located in the world's manufacturing hub, we offer lead times as short as 15 days for standard orders.

5. Technical FAQ

Q1 What is the MOQ (Minimum Order Quantity) for a custom hinge like this?

We are flexible. For CNC machined parts, we accept low-volume orders (MOQ: 1 piece) for prototyping and testing. For Die Casting, standard MOQs apply but are negotiable.

Q2 Can you help if I only have a sample but no 3D drawing?

Yes. As a comprehensive engineering partner, Sunmy offers reverse engineering services. We can scan your sample and create the necessary 3D CAD files for production.

Q3 How do you ensure the assembly fits my equipment?

We strictly follow the tolerances specified in your drawings (typically ±0.02mm). We recommend sending us the mating part or detailed interface drawings so we can perform a fit-check validation at our factory before shipment.

Q4 What is your standard lead time?

Generally 15 days for CNC machined batches. Complex surface treatments or large casting orders may require additional time, which will be confirmed during the quotation phase.

Q5 What 3D CAD file formats do you accept for quotation?

We support major industry formats including STEP, IGES, DXF, DWG, and X_T files for fast and accurate quotation and DFM evaluation.

Q6 What quality standards and certifications do you follow?

Sunmy Hardware is ISO 9001:2015 certified. We strictly follow ISO 2768-m standard tolerances and provide inspection reports along with material certificates upon request.
