Product Description
Product Overview

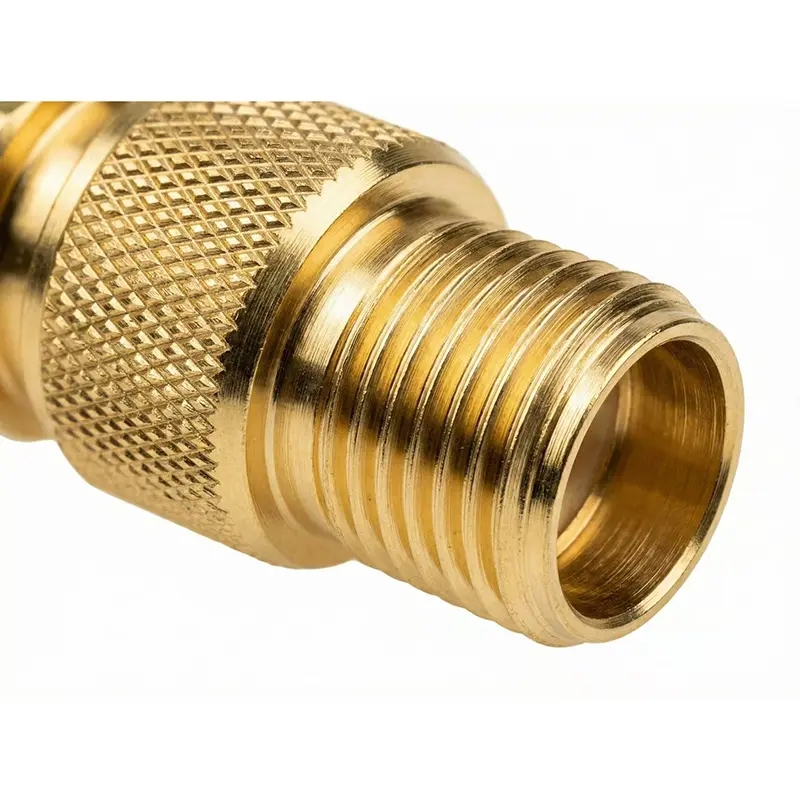

This precision brass connector serves as a critical interface in fluid control systems and pneumatic assemblies. Designed for high-end industrial applications, it balances structural integrity with functional ergonomics. The part features a distinctive diamond knurling pattern for manual tightening and precision-cut threads for secure sealing. As an OEM manufacturer, Sunmy Hardware produces these connectors tailored to specific client drawings, ensuring perfect compatibility with mating components.
Key Specifications
| Material | Brass C36000 |
| Process | CNC Turning, Knurling, Threading |
| Tolerance | ±0.01mm |
| Surface Finish | Ra 0.8 (As machined) |
| Thread Type | M20 x 1.5 Custom Thread |
Manufacturing Process Insight
Production utilizes our advanced Swiss-style CNC Lathes (Sliding Headstock).
One-Setup Machining
Turning, facing, threading, and knurling are completed in a single operation to guarantee varying concentricity within 0.01mm.
Precision Knurling
Unlike standard rolling, we use a cut-knurling process to create sharp, well-defined diamond patterns that provide superior grip without flaking.
Thread Protection
Automated thread checking during production ensures every part meets the Go/No-Go gauge standards before leaving the machine.
Key Features & Benefits
Material Excellence
Machined from Brass C36000, offering excellent corrosion resistance and natural antimicrobial properties.
Tactile Grip
The deep diamond knurling allows for tool-free assembly and disassembly, ideal for maintenance-heavy environments.
Leak-Proof Design
High-precision threads (M20 standard or custom pitch) ensure a tight seal against gas or liquid leakage.
Surface Finish
Parts are degreased and passivated, resulting in a bright, oxidation-resistant gold finish.
Technical FAQ
-
Q1Can you customize the thread type?
Yes, we support Metric (M), NPT, BSPP, and BSPT thread standards based on your requirements.
-
Q2What is the minimum order quantity (MOQ) for turned parts?
We are flexible. We handle prototypes (1–10 pcs) via CNC and high-volume runs (10,000+ pcs) via auto-lathe.
-
Q3How do you handle raw material verification?
We provide Material Mill Certificates for every batch of brass used to verify chemical composition.
-
Q4What surface treatment options are available for brass connectors?
We offer as-machined (bright brass), nickel plating, chrome plating, and passivation treatments depending on the application environment and customer specification.
-
Q5Can you produce parts based on our 2D drawings or 3D CAD files?
Yes. We accept DWG, DXF, STEP, IGES, and PDF formats. Our engineering team will perform a DFM (Design for Manufacturability) review before production begins to ensure optimal results.
-
Q6What quality inspection reports can you provide with shipments?
We can supply a full quality package including dimensional inspection reports, material certifications, surface roughness measurements, and thread gauge verification records upon request.
