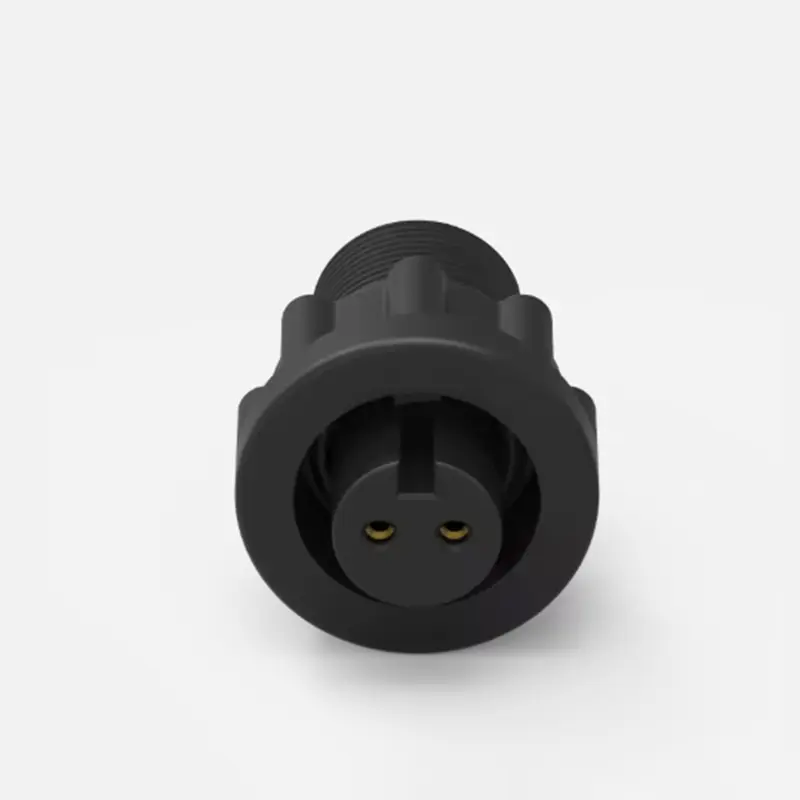

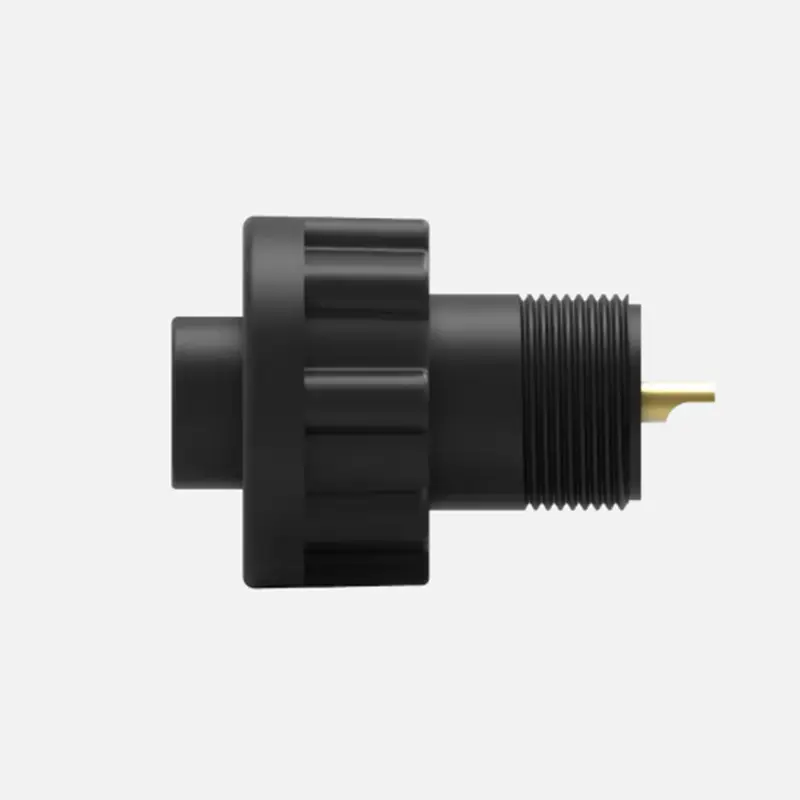

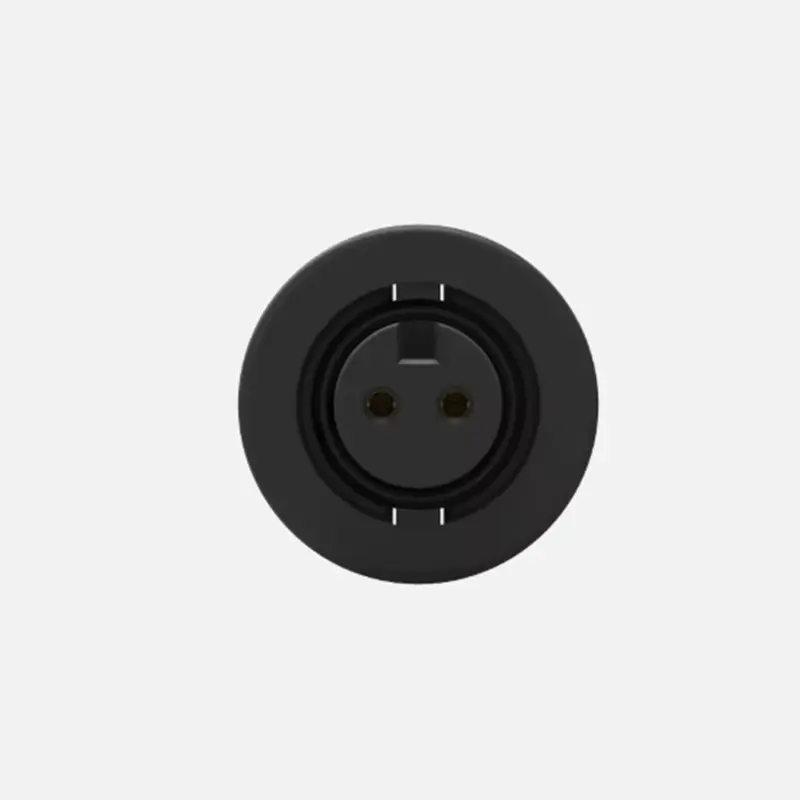

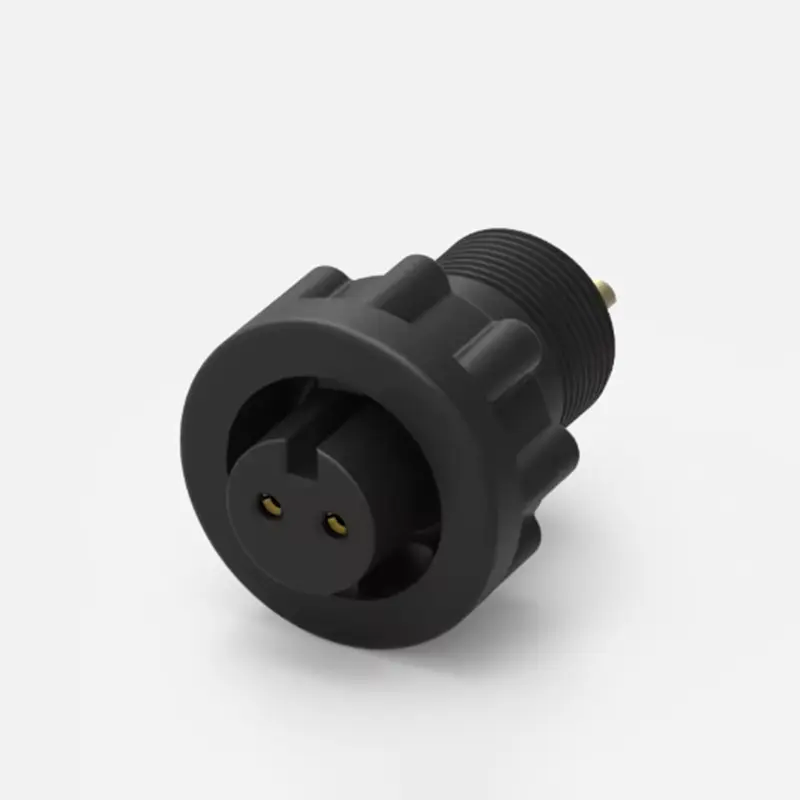

Designed for rigorous industrial environments, this 2-Pin Waterproof Circular Connector represents the pinnacle of Plastic Injection Molding precision. Engineered by Sunmy Hardware to meet strict IP67 standards, this connector ensures reliable power and signal transmission in harsh conditions. Featuring a robust Nylon housing and gold-plated brass contacts, it offers superior resistance to corrosion, vibration, and moisture. This is an ideal solution for outdoor lighting, industrial automation, and heavy machinery applications where durability is non-negotiable.
Manufacturing Process & Engineering Insight
At Shenzhen Sunmy Hardware, we leverage advanced manufacturing capabilities to produce high-performance interconnect solutions.
Precision Plastic Injection Molding
The connector shell is manufactured using high-grade Nylon (PA66/Engineering Plastic) via high-precision injection molding machines. This ensures high structural integrity, consistent wall thickness, and zero flash, resulting in a perfectly threaded locking mechanism.
Material Science
We utilize specialized mold flow analysis to ensure the Nylon material maintains its mechanical strength and thermal stability across a wide temperature range (-20°C to 85°C).
Contact Assembly
The brass pins are precision-turned and gold-plated to minimize contact resistance (Max 10mΩ) before being securely seated within the molded housing, ensuring they remain fixed even during high-cycle mating.
Key Specifications
Based on the technical data provided, the core specifications for this model (WP-02F1-01-11) are as follows:
| Property | Specification |
|---|---|
| Model Number | WP-02F1-01-11 |
| Pin Configuration | 2 Pins (Male Contacts in Housing) |
| Rated Current | 5 A |
| Rated Voltage | 250 V |
| IP Rating | IP67 Dust Tight & Waterproof |
| Shell Material | High-Quality Nylon (Plastic Injection Molded) |
| Contact Material | Brass (Gold/Nickel Plated) |
| Contact Resistance | 10mΩ Max |
| Insulation Resistance | 100MΩ Min |
| Withstanding Voltage | 1.0 KV (Dielectric) |
| Operating Temperature | -20°C ~ 85°C |
| Connection Type | Molded with Cable / Threaded Locking |
Key Features & Advantages
-
✔Robust Waterproofing The IP67 rating ensures the device is fully protected against dust ingress and immersion in water, making it suitable for outdoor and marine applications.
-
✔Secure Locking System Features a thread-locking coupling mechanism with a knurled grip design for easy manual tightening, providing excellent vibration resistance.
-
✔Superior Conductivity Gold-plated brass contacts prevent oxidation and ensure stable signal/power transfer over the product's lifespan.
-
✔Customization Ready As a manufacturer, Sunmy can adjust the injection molding materials (e.g., UV-resistant additives) or cable lengths based on client requirements.
-
✔High Dielectric Strength With a dielectric withstanding voltage of 1.0KV, the connector offers safety and reliability in power applications.
Technical FAQ
A1: Yes. As a direct manufacturer with in-house injection molding capabilities, we offer OEM/ODM services. We can customize the cable assembly length, change the shell material (e.g., to fire-retardant UL94-V0), or modify the color based on your MOQ requirements.
A2: Our quality control process includes rigorous air-tightness testing and immersion testing on batch samples to verify the sealing integrity of the injection-molded shell and internal O-rings.
A3: For standard models like the WP-02F1, lead times are typically 7-15 days. For custom injection-molded solutions, lead times may vary depending on mold development and tooling requirements.
A4: The rear of the pins is designed for solder bucket termination, allowing for a secure and permanent wire connection before the over-molding process or final assembly.
