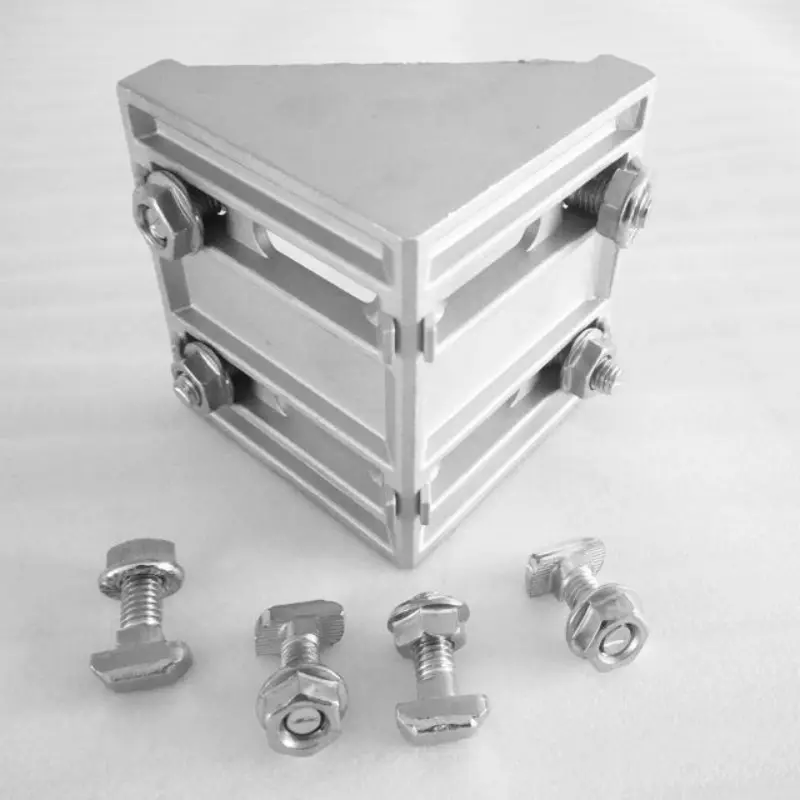

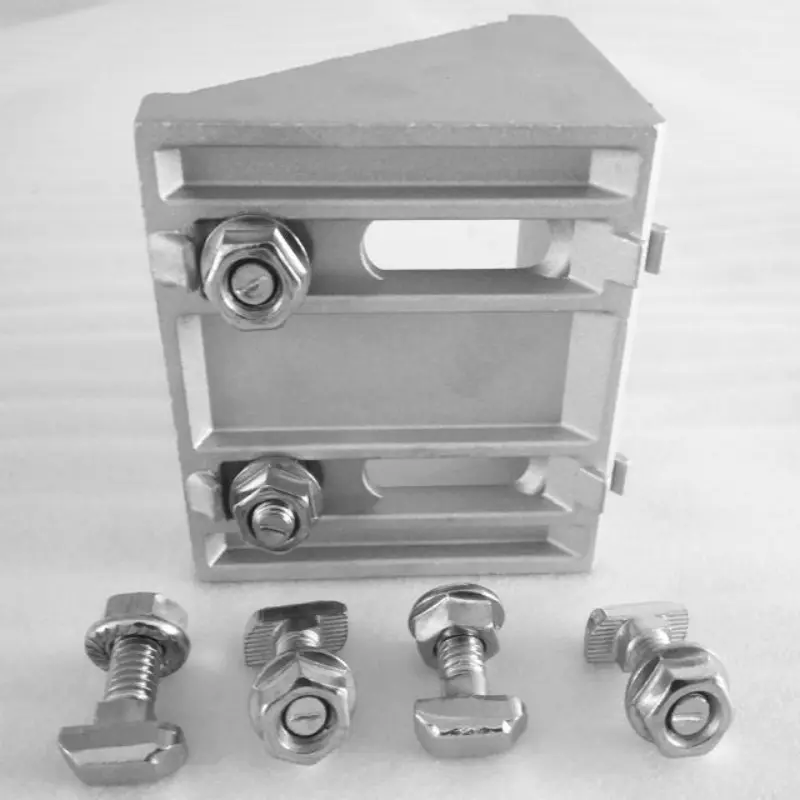

ODM Premium 8080 Aluminum Profile T-Slot Corner Bracket | Custom Heavy Duty Inside Corner Brace Manufacturers, Product
Product Description
Product Overview
The Premium 8080 Aluminum Profile T-Slot Corner Bracket by Shenzhen Sunmy Hardware Co., Ltd. is engineered to provide maximum structural rigidity and robust 90-degree connections for heavy-duty industrial framing systems. Specifically designed for 8080 series aluminum extrusions, this inside corner brace is a critical component in building high-load structures such as automated machinery frames, CNC router bases, heavy-duty workbenches, and protective robot enclosures. It ensures precise alignment and effectively absorbs high vibrational stresses in intense industrial environments.
Manufacturing Process & Engineering Insights
At Shenzhen Sunmy Hardware Co., Ltd., we leverage advanced Sheet Metal Fabrication and Precision Stamping technologies to manufacture high-performance hardware components. This 8080 corner bracket undergoes a rigorous production cycle tailored to industrial demands:
- Precision Punching & Cutting: Clean, burr-free slots and mounting holes are stamped out using high-tonnage precision presses, ensuring seamless compatibility with standard T-bolts and flange nuts.
- Accurate Bending & Forming: State-of-the-art hydraulic bending machines form the precise 90-degree angle, maintaining strict dimensional stability and absolute structural integrity.
- Premium Material Selection: Fabricated using high-grade 6063 Aluminum Alloy (or custom stainless steel/carbon steel upon request), offering an optimal strength-to-weight ratio.
- Advanced Surface Treatment: The components undergo professional anodization to enhance corrosion resistance, surface hardness, and a sleek aesthetic appeal.
- 100% OEM/ODM Customization: We offer full-scale custom production. Whether you require modifications in dimensions, hole configurations, material thickness, or surface finishes, our engineering team develops custom tooling and fixtures to meet your exact specifications based on your 2D/3D CAD drawings or physical samples.
Technical Specifications
| Product Name | Heavy Duty 8080 Aluminum Profile T-Slot Corner Bracket |
| Manufacturing Process | Precision Sheet Metal Fabrication, Stamping, Punching, Hydraulic Bending |
| Base Material | 6063 Aluminum Alloy (Options: Carbon Steel, Stainless Steel, Brass) |
| Temper Range | T3 - T8 (Optimized for structural annealing and high hardness) |
| Dimensional Profile | Perfectly matches 8080 Series Aluminum Profiles (Fully Customizable sizes) |
| Dimensional Tolerance | ±1% standard (Precision customization up to ±0.1mm available) |
| Surface Treatment | Anodization (Clear, Black, Matt Finish), Powder Coating, Zinc Plating |
| Color Options | Silver, Black, or completely Customized Pantone colors |
| Industrial Usage | Heavy machinery frames, modular workspaces, automation systems, heat sinks |
| Fastener Accessories | Heavy duty T-Bolts and Flange Nuts included as a full kit option |
| Quality Assurance | 100% QC inspection protocol prior to packaging and dispatch |
| Certification | ISO 9001:2015 Registered Management System, RoHS Compliant |
Key Features & Strategic Advantages
- Superior Structural Strength: Designed to withstand heavy torsional forces and high load capacities, providing a completely secure, vibration-resistant joint.
- High Precision Alignment: Stamping and bending tolerances are strictly monitored, ensuring effortless assembly and flush fitting with aluminum extrusions.
- Excellent Corrosion Resistance: Premium thick anodized coating protects the bracket from harsh industrial wear, chemical exposure, and humidity.
- Flexible Slot Design: Features elongated mounting slots that allow for adjustable positioning and seamless multi-angle fastening configurations.
- Full Tailored Customization: 100% customizable specifications to match any proprietary or specialized metric framing system perfectly.
Technical FAQ
Q1: Can this bracket be customized for non-standard aluminum profiles?
A: Yes, absolutely. Shenzhen Sunmy Hardware specializes in full OEM/ODM customization. We can adjust the width, length, thickness, slot spacing, and overall geometry to fit your proprietary or non-standard profiles precisely.
Q2: What alternative materials and surface treatments do you offer?
A: While 6063 aluminum alloy with an anodized finish is standard, we can also manufacture these braces using heavy-duty carbon steel or stainless steel with powder coating, zinc plating, or passivation treatments based on your specific application needs.
Q3: What is your standard lead time and MOQ for custom orders?
A: Our Minimum Order Quantity (MOQ) is highly flexible depending on the depth of customization. For standard modifications, the lead time ranges from 15 to 20 days. For completely new tooling developments, it typically takes 25 to 30 days.
Q4: How do you guarantee the quality and dimensional accuracy?
A: We implement a strict quality control workflow including first-article inspection (FAI), in-process inspection during stamping/bending, and a 100% final QC check before packaging. We are ISO9001 certified and provide material test reports upon request.
Q5: What primary industrial applications is this 8080 corner bracket designed for?
A: It is specifically engineered for high-load structural framing, including automated machinery bases, CNC routers, industrial protective robot enclosures, and heavy-duty modular workbenches.
Q6: Are standard mounting fasteners included with the bracket?
A: We offer full kit configurations that include heavy-duty T-bolts and flange nuts tailored to your specific profile slot size upon request.
