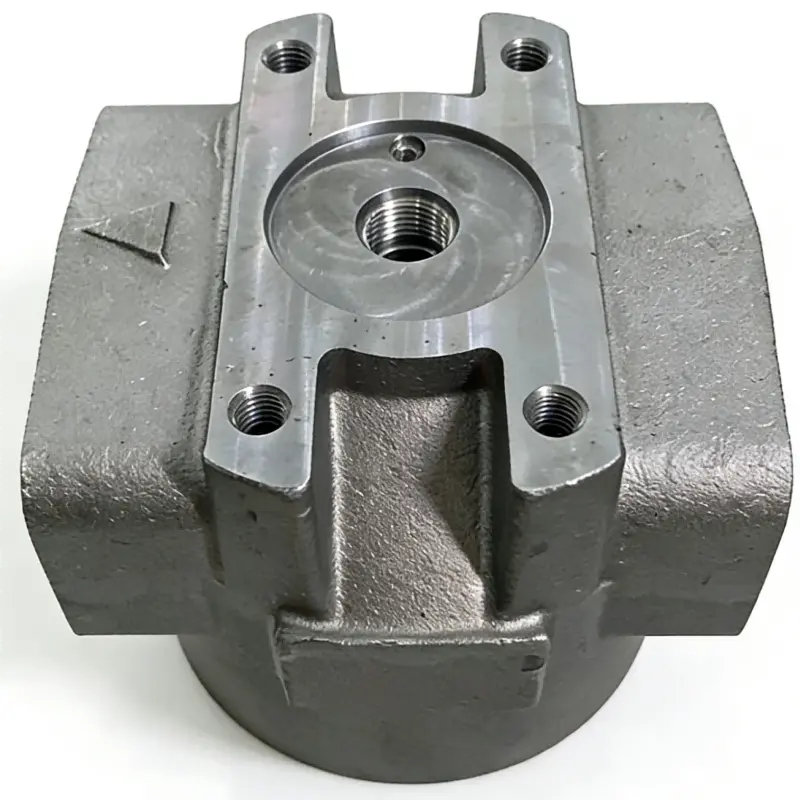

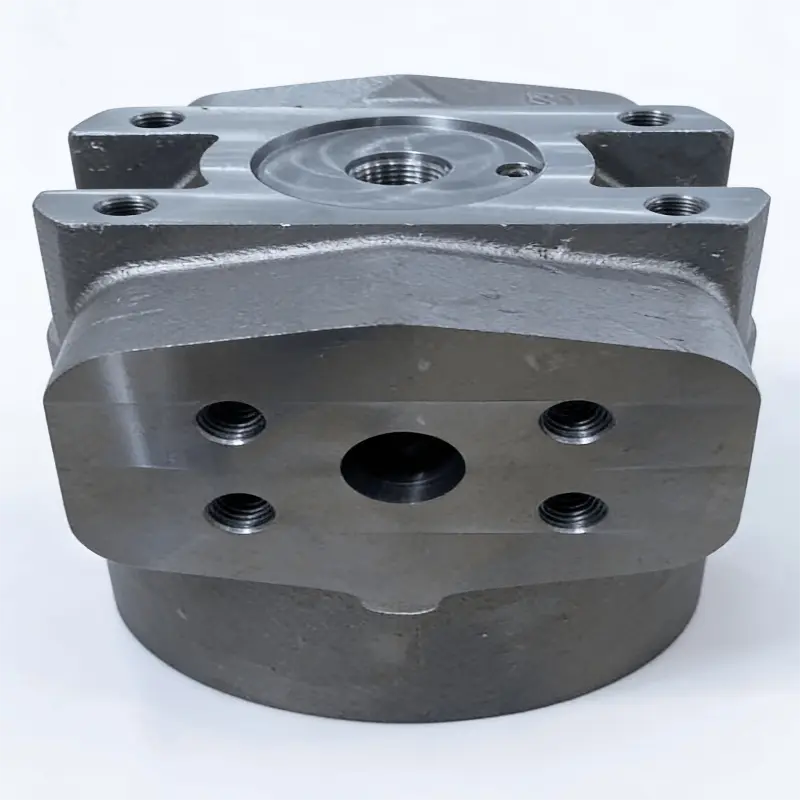

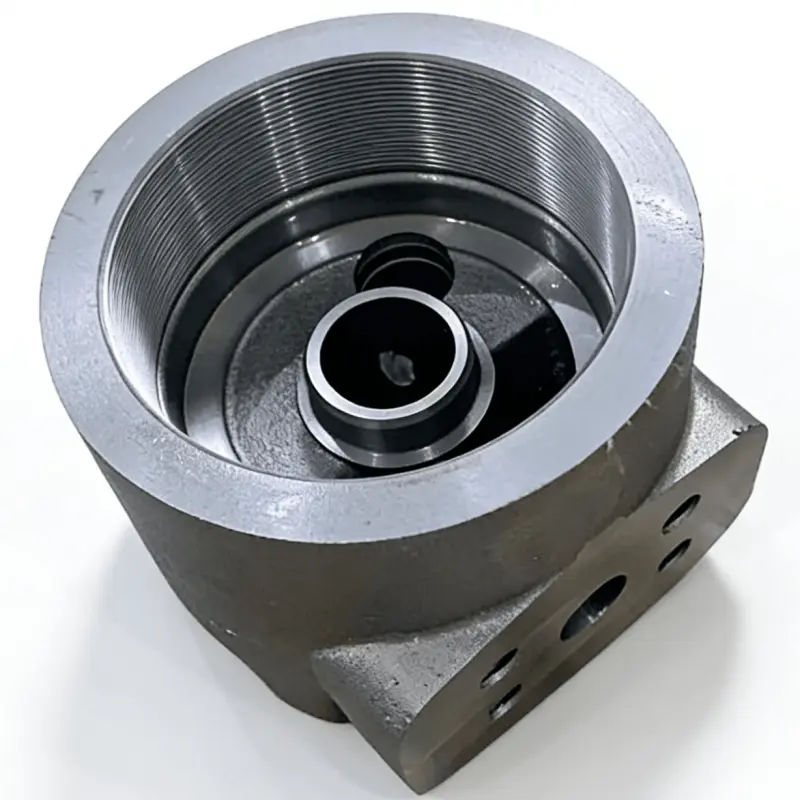

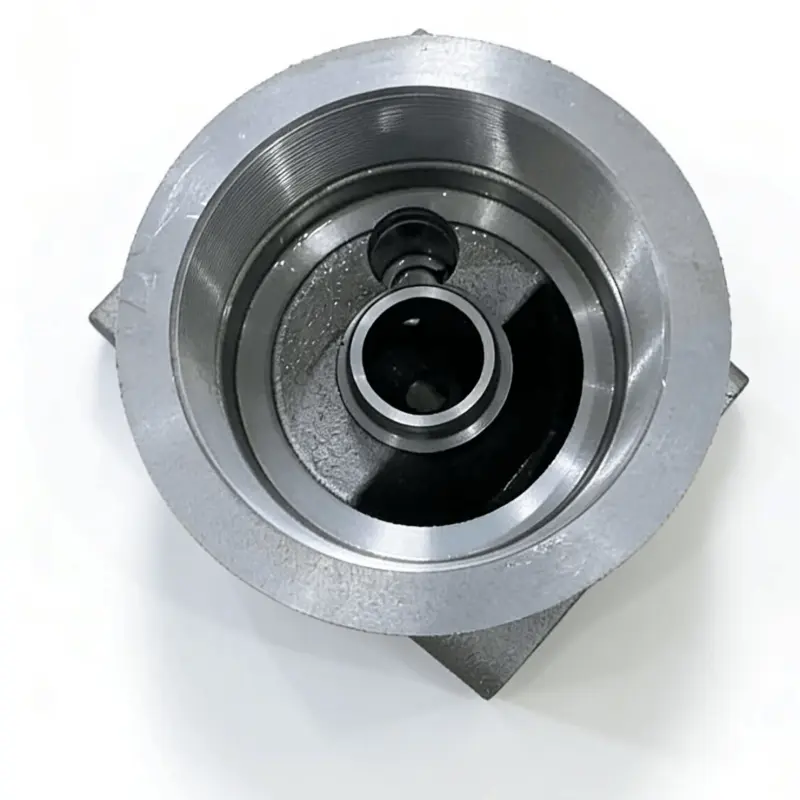

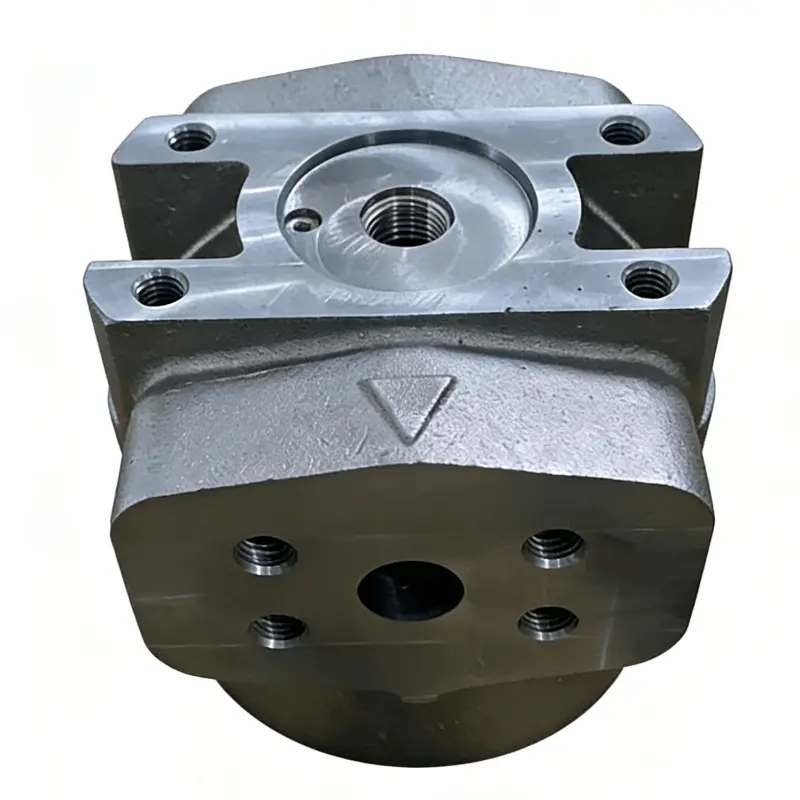

High-Quality Custom OEM Precision Cast Iron Hydraulic Pump Housing Products, Factories
Product Description
Product Overview
Shenzhen Sunmy Hardware Co., Ltd. offers premium, high-durability OEM Cast Iron Hydraulic Pump Housings specifically engineered for demanding heavy-duty industrial and mobile hydraulic systems. Designed to withstand high operating pressures and repetitive stress cycles, this component serves as the structural core for gear pumps, vane pumps, and hydraulic motor assemblies.
Leveraging our advanced iron casting and secondary multi-axis CNC machining, we eliminate inner porosity defects while guaranteeing perfect concentricity, flawless thread profiles, and ultra-precise sealing faces. As a dedicated OEM/ODM manufacturer, we execute 100% tailored production matching your unique engineering designs and technical drawings.
Manufacturing Process & Engineering Insights
Our robust manufacturing flow guarantees structural integrity from raw melt to final precision component:
-
Advanced Iron Casting: Utilizing specialized Sand Casting or Shell Mold Casting techniques with high-grade Grey Iron (GG20/GG25) or Ductile Iron (GGG40/GGG50) to achieve superior mechanical strength and vibration-damping properties.
-
Multi-Axis CNC Machining: Post-casting processing is executed on advanced CNC machining centers to achieve tight-tolerance internal bores, high-precision O-ring grooves, face parallelism, and flawless threaded connection ports.
-
Defect and Porosity Control: Strict thermal management during the cooling phase ensures uniform grain structure, effectively preventing micro-porosity and internal casting voids that compromise performance under hydraulic pressure.
Technical Specifications
| Technical Parameter | Specification Details & Capabilities |
|---|---|
| Product Name | OEM Precision Cast Iron Hydraulic Pump Housing / Valve Body |
| Primary Process | Iron Casting (Sand/Shell Molding) + Precision CNC Machining |
| Material Options | Grey Cast Iron (GG20, GG25, HT200, HT250) Ductile Cast Iron (GGG40, GGG50, QT400, QT500) |
| Dimensional Tolerance | Machining: Up to ±0.010 mm (ISO 2768-m fine) Casting Geometry: ISO 8062 CT7 - CT9 grade |
| Surface Treatment | Anti-rust oil immersion, Electrophoretic Painting (E-coat), Powder Coating, or Custom Zinc Plating |
| Interface & Ports | High-precision threaded fluid ports (NPT / G / Metric) & SAE Flange connection mountings |
| Quality Inspection | 100% CMM Coordinate Dimension Check, Spectrometer Material Analysis, Hydraulic Pressure Leakage Test |
| Customization Scope | 100% Custom manufacturing based on client's 2D/3D engineering drawings (STEP, IGES, DWG, PDF) |
Key Features & Competitive Advantages
-
Exceptional Wear & Pressure Resistance: High-density iron casting composition provides optimal structural rigidity and long-term fatigue resilience under continuous high hydraulic pressures.
-
Flawless Internal Sealing Faces: Micro-machined internal surfaces guarantee zero-leakage interfaces with mating seals, pistons, or internal gears, preserving peak volumetric efficiency.
-
100% Comprehensive Customization: From selecting custom casting alloys to machining intricate non-standard port arrays, we translate your exact CAD blueprints into reliable physical hardware.
-
Rigorous B2B Quality Control: Every single batch undergoes spectral chemical composition verification, ultrasonic defect checking, and ultra-precise coordinate measurements.
Technical & Commercial FAQ
Q1 What file formats do you require for custom OEM quoting and manufacturing?
A: We accept all major industrial 3D CAD formats, including STEP (.stp/.step), SolidWorks (.sldprt), and IGES (.igs). For critical tolerances and threaded port requirements, please also supply a corresponding 2D engineering drawing in PDF or DWG format.
Q2 How does Sunmy Hardware ensure that the castings are completely free of inner porosity?
A: We utilize advanced mold-flow analysis prior to casting, closely regulate casting temperatures, and employ specialized degassing techniques. Post-machining, housings undergo hydrostatic pressure testing and optional ultrasonic inspection to certify zero defect leakage.
Q3 What is the typical lead time for a custom casting and machining project?
A: For new custom OEM projects, mold tooling development and initial sample validation typically take 25 to 35 days. Upon sample approval, mass production batches generally require 30 to 45 days depending on order volume and machining complexity.
Q4 What specific iron grades can be specified for hydraulic pump components?
A: We work extensively with Grey Cast Iron (such as GG20, GG25, HT200, HT250) for superior vibration damping and Ductile Cast Iron (such as GGG40, GGG50, QT400, QT500) for applications requiring high yield strength and severe pressure tolerance.
Q5 Do you perform leak and pressure testing on finished hydraulic pump housings?
A: Yes, 100% hydrostatic or pneumatic pressure leak testing is conducted on critical sealing zones and internal oil passages based on your engineering specification requirements prior to final packaging.
