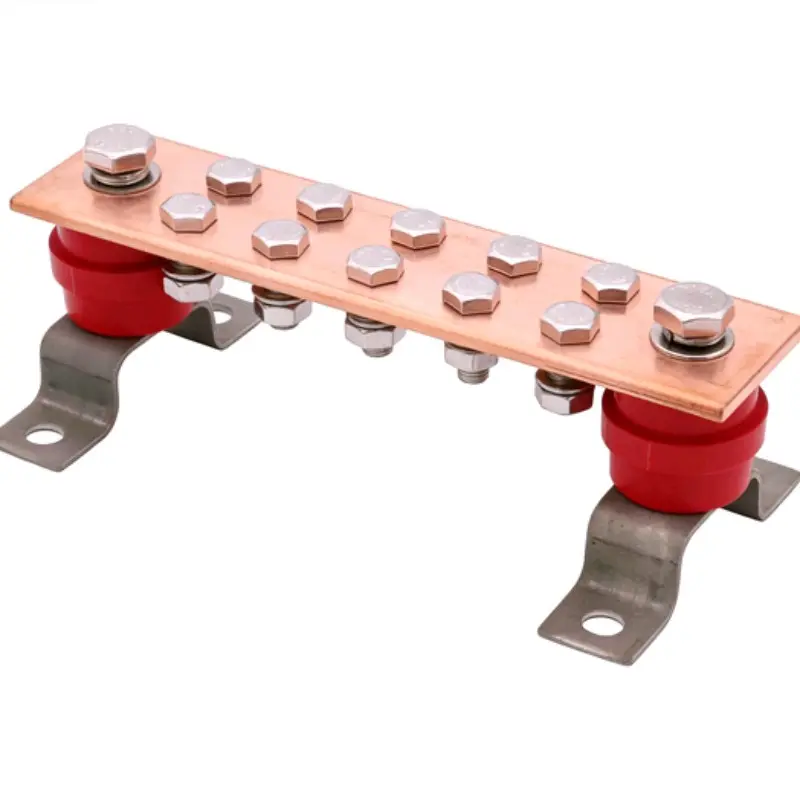

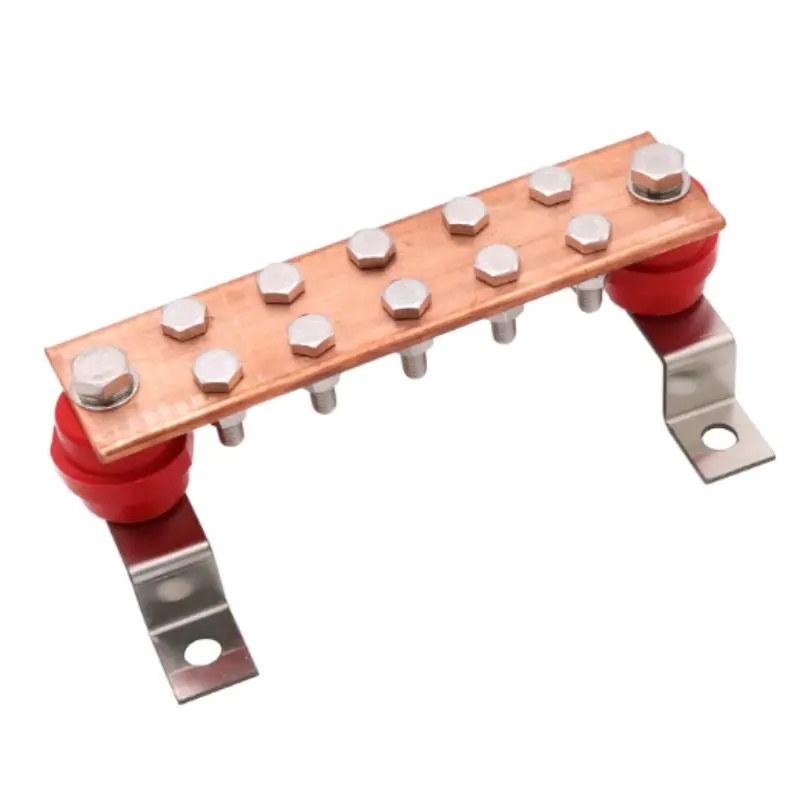

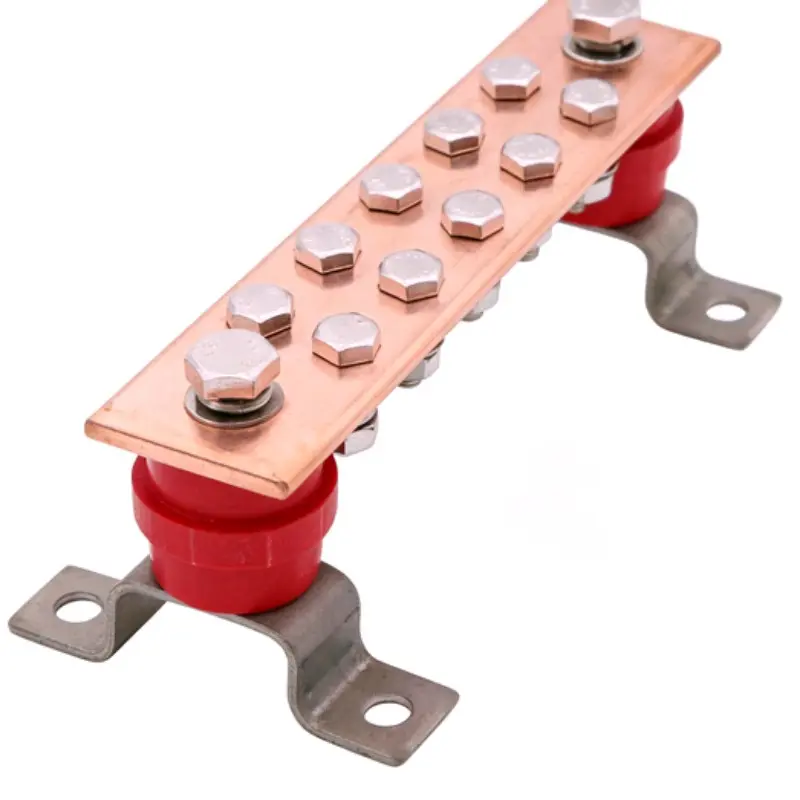

High-Quality Custom High-Conductivity Copper Grounding Busbar Kit with Stand-off Insulators Manufacturer, Factory
Product Description
Product Overview
Our Custom High-Conductivity Copper Grounding Busbar Kit is engineered to provide an optimized, central electrical grounding point for industrial cabinets, telecommunication systems, data centers, and power distribution networks. Manufactured with heavy-duty solid copper, this busbar ensures exceptional electrical pathway efficiency, minimized resistance, and ultimate safety compliance. Pre-assembled with robust stand-off insulators and rigid mounting brackets, it offers a secure, reliable, and out-of-the-box solution tailored to high-demand engineering specifications.
Process & Manufacturing Insights
At Shenzhen Sunmy Hardware Co., Ltd., we utilize state-of-the-art Sheet Metal & Stamping technologies combined with precision post-processing to construct these heavy-duty assemblies. The manufacturing flow embodies maximum durability and dimensional control:
-
Precision Blanking High-speed hydraulic shear blanking establishes a perfectly straight, uniform base bar outline without edge distortion.
-
CNC Punching & Tapping Automated CNC stamping stations execute exact diameter hole patterns, eliminating thermal stresses induced by traditional laser drilling and maintaining native material integrity.
-
Surface Conditioning Advanced mechanical deburring eliminates sharp corners, ensuring seamless contact surfaces and maximum surface area interface for grounding terminals.
-
Bracket Stamping Brackets are cold-formed via heavy-tonnage stamping dies, resulting in superior structural rigidity capable of handling extreme vibration and mechanical stresses.
Key Technical Specifications
| Parameter / Property | Standard & Customizable Configurations |
|---|---|
| Primary Material | T2 / C11000 Pure Copper (≥99.9% Electrical Conductivity) |
| Process Type | Precision Sheet Metal & Heavy-Duty Stamping / Punching |
| Dimensions | 4" x 1/4" x 20" (Fully customizable to any length, width, or thickness) |
| Hole Configuration | 12-Position Multi-Hole Matrix (Custom hole sizes, counts, and spacing available) |
| Hardware Included | Stainless Steel 304/316 Hex Bolts, Flat Washers, Lock Washers & Hex Nuts |
| Insulator Material | High-Dielectric BMC/SMC Glass-Reinforced Polyester (Red or Blue available) |
| Mounting Brackets | Heavy-Duty Stamped Stainless Steel or Zinc-Plated Carbon Steel Brackets |
| Surface Finishing | Bare Copper Polished or Electro-Tin Plating (For enhanced anti-corrosion) |
| Quality Standards | ISO9001 Certified Quality Management System, RoHS Compliant |
| Main Applications | Data Centers, Telecommunications, Power Distribution, Electrical Enclosures |
| Production Turnaround | 3-5 Working Days for Samples | 25-30 Days for Mass Production Orders |
Main Features & Advantages
-
Ultimate Electrical Conductivity: Engineered from premium C11000 grade copper, offering maximum electrical throughput, extremely low thermal buildup, and minimized voltage drops.
-
100% Comprehensive Customization: Every aspect—including overall length, thickness, hole patterns, screw threads, surface coating, and mounting bracket heights—can be entirely customized to match customer engineering prints.
-
Heavy-Duty Electrical Isolation: Fitted with specialized stand-off insulators (available in standard red or blue high-density compounds) that provide flawless electrical isolation and prevent short circuits or leakage.
-
Ready-to-Install Module: Shipped as a fully assembled kit with premium stainless steel hardware, vastly lowering installation times, labor overhead, and material procurement complexities.
-
Industrial-Grade Reliability: Manufactured under strict ISO9001 parameters, ensuring uniform thickness, zero surface cracking, and precise tolerance controls for dependable deployments.
Technical FAQ
Q1: Can we customize the hole diameter and physical placement configuration?
A1: Absolutely. We provide complete OEM/ODM support. You can provide your exact CAD blueprints, and our CNC stamping/punching center will precisely configure hole sizes, spacing, and thread patterns according to your requirements.
Q2: What options do you offer for surface treatment?
A2: We offer high-purity bare copper polishing as standard. For environments prone to moisture or harsh chemical exposures, we provide electro-tin plating, which drastically improves oxidation and corrosion resistance without compromising electrical conductivity.
Q3: What are the lead times for samples and mass manufacturing batches?
A3: Standard prototyping/sample production takes approximately 3-5 working days. Mass commercial scale production typically ranges between 25-30 days, depending on custom structural complexities and order volume.
Q4: Do you offer different types or colors of insulators?

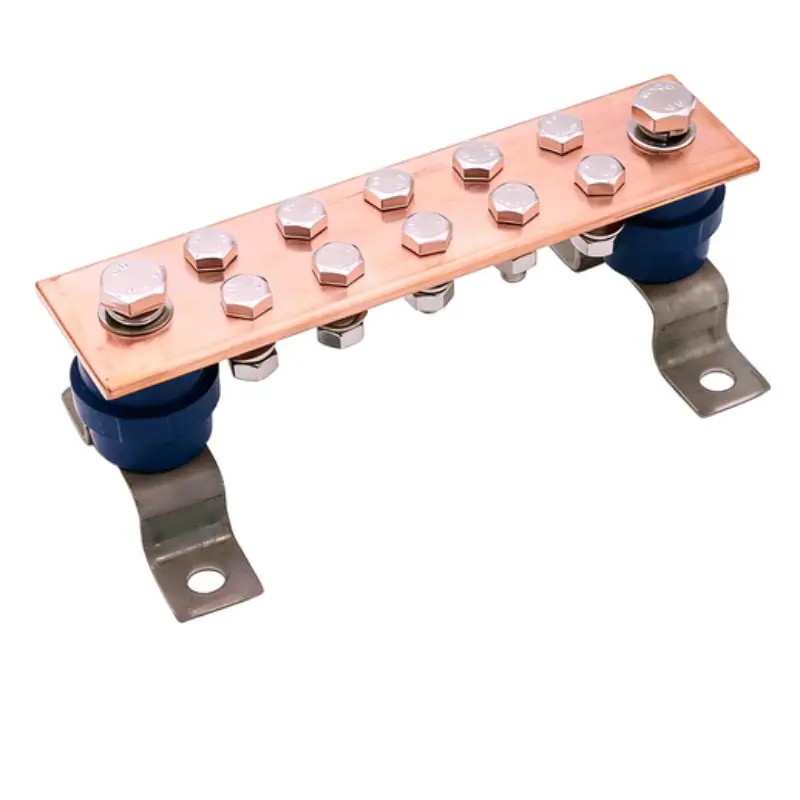

A4: Yes, we provide multiple structural insulator profiles (such as cylindrical or drum shapes) in both industrial red and blue high-dielectric compounds to meet distinct cabinet safety labeling codes.
Q5: Are these grounding busbars compliant with RoHS and international quality standards?
A5: Yes, all custom grounding busbar assemblies are manufactured under ISO9001 certified quality management systems and strictly conform to RoHS environmental and safety standards.
