Custom Premium Zinc Alloy Die-Casting Industrial Cabinet Cam Lock Supplier, Exporters
Product Description
Product Overview

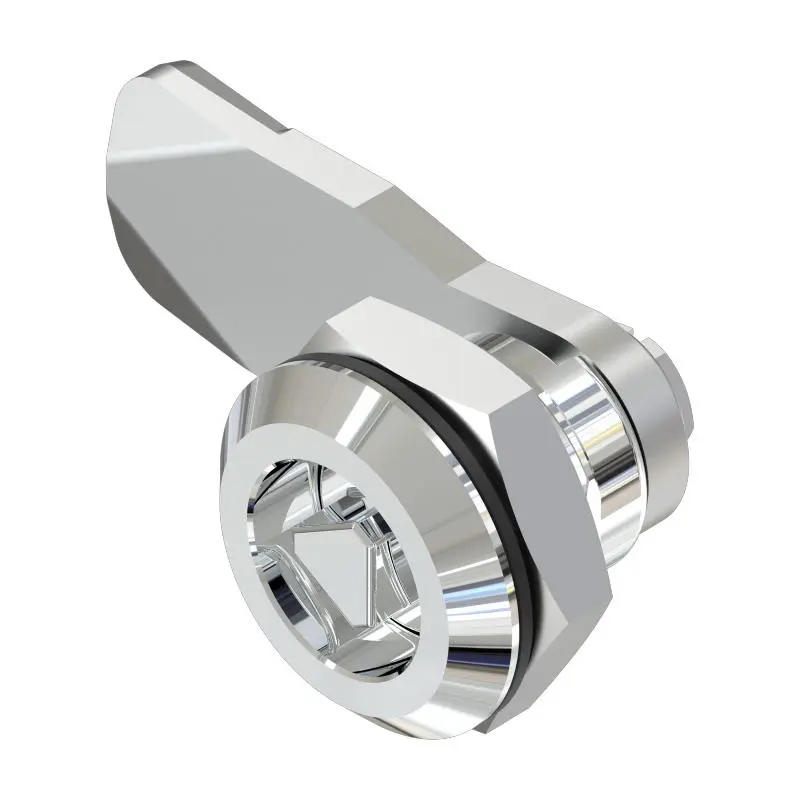

The Premium Zinc Alloy Die-Casting Industrial Cabinet Cam Lock is a highly robust, secure, and versatile quarter-turn locking solution engineered specifically for high-demand industrial environments. Designed for application in electrical enclosures, server racks, power distribution boards, telecom cabinets, machinery access panels, and heavy-duty toolboxes, this lock guarantees excellent mechanical performance and superior vandal resistance. Utilizing precision high-pressure zinc die-casting, it delivers unyielding structural strength and perfect dimensional accuracy, facilitating seamless deployment across diverse global industrial standards.
Manufacturing Process & Engineering Insights
Our manufacturing framework leverages state-of-the-art Casting Services combined with secondary precision CNC machining to guarantee the highest tier of engineering excellence:
-
High-Pressure Zinc Die Casting: Formed under precise thermal controls using premium-grade zinc alloy (Zamak series), ensuring zero internal porosity, high density, and exceptional impact toughness.
-
Precision CNC Turnery & Threading: All critical thread tolerances and interlocking components undergo fine-tuned lathe machining to provide a silky-smooth actuation mechanism and clear, play-free installation.
-

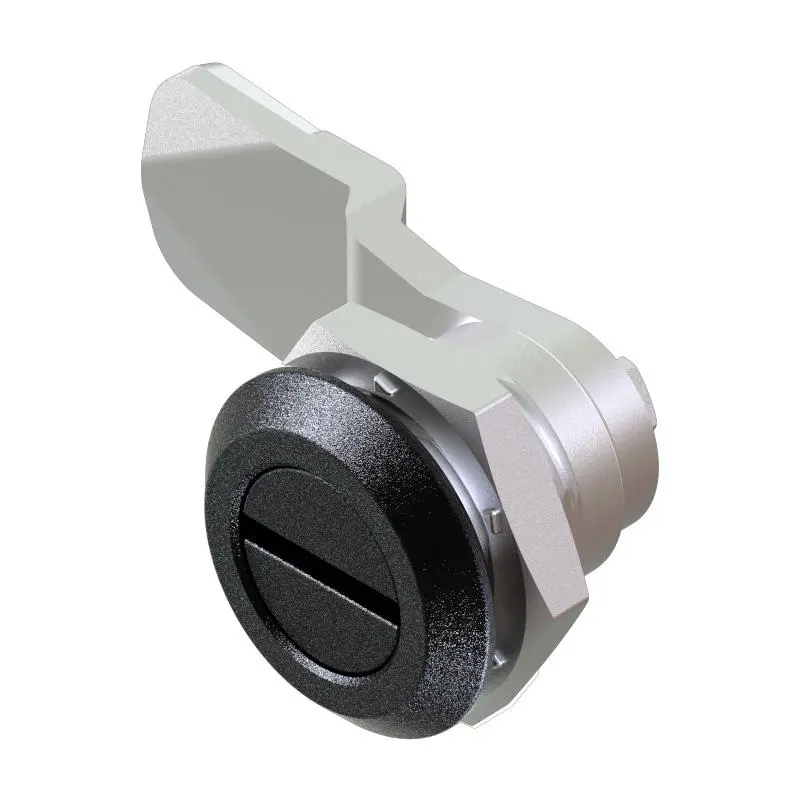

Advanced Surface Finishing: Engineered to withstand aggressive external environments, the product series offers industrial matte black powder coating and flawless mirror-polished bright chrome electroplating. These finishes undergo rigorous salt spray testing to ensure premium anti-corrosion and anti-oxidation performance over an extended operational lifespan.
Technical Specifications
| Technical Parameter | Specification & Engineering Standard |
|---|---|
| Product Classification | Industrial Cabinet Cam Lock / Quarter-Turn Panel Lock |
| Primary Material | High-Grade Zinc Alloy (Zamak 3 / Zamak 5) |
| Manufacturing Process | High-Pressure Die Casting (HPDC) + Secondary Precision CNC Machining |
| Cam Length / Offset | Standard 50mm (Fully customizable lengths, straight, or offset configurations) |
| Drive Insert Options | Triangle, Square, Double-Bit, Slotted/Coin-Turn, Hexagon, Customized Pentagon with Pin |
| Surface Treatment | High-Gloss Electroplated Chrome / High-Durability Matte Black Powder Coating |
| Environmental Compliance | RoHS Certified, REACH Compliant, Lead-Free Passivation |
| Ingress Protection Rating | IP65 Waterproof and Dustproof with integrated premium rubber O-ring sealing |
| Customization Scope | 100% Full OEM/ODM Capability (Custom dimensions, bespoke housing depth, client logo engraving) |
| Industrial Applications | Power Distribution Cabinets, Telecom Racks, Machinery Enclosures, Control Desks, Transit Lockers |
Key Features & Advantages
-
Enduring Structural Integrity: Optimized zinc-alloy composition yields immense tensile strength, effectively neutralizing forced entry attempts and ensuring structural safety.
-
Flexible Security Profiles: Available in a multitude of head insert drives (Triangular, Square, Double-bit, etc.) allowing operations managers to match specific field access and security level requirements.
-
Weatherproof & Sealed Engineering: Equipped with high-performance rubber gaskets and NBR O-rings, effectively blocking dust, humidity, oil, and liquid ingress, making it highly reliable for outdoor deployments.
-
100% Tailored Customization: Backed by Sunmy Hardware’s comprehensive R&D facility, we provide end-to-end customization. We can alter the cut-out dimensions, grip lengths, cam offsets, or finishes exactly according to your 2D/3D technical drawings (STEP/DWG formats).
Technical FAQ for Global B2B Buyers
Q1: How does Shenzhen Sunmy Hardware guarantee the quality of die-casted parts?
A: We implement a rigorous multi-stage quality assurance protocol aligned with ISO9001:2015. This includes raw material spectrographic analysis, automated coordinate measuring machine (CMM) dimensional checks, and continuous salt spray testing to validate anti-corrosion tolerances.
Q2: What is the Minimum Order Quantity (MOQ) for customized cam locks?
A: For standard configurations with custom finishes, our MOQ starts at 1,000 pieces. For completely proprietary custom shapes requiring new mold development, we offer highly accommodating initial tooling packages with flexible production MOQs based on your project scale.
Q3: What is your standard lead time for prototyping and mass manufacturing?
A: Bespoke mold design and trial sample prototyping are completed within 15 to 20 business days. Following sample authorization by the client, bulk volume mass production typically ranges between 20 to 25 days depending on the ordered quantity.
Q4: Are your raw materials environmentally certified for import into Europe and North America?
A: Yes. All zinc alloy materials, powder coatings, and electroplating elements are fully RoHS and REACH certified, allowing hassle-free custom clearance and regulatory compliance in Western markets.
Q5: What Ingress Protection (IP) rating do these industrial cam locks offer?
A: Our industrial cabinet cam locks feature an IP65 waterproof and dustproof rating, equipped with integrated premium rubber O-rings and NBR sealing gaskets to block dust, humidity, and oil ingress in outdoor environments.
Q6: Can we request custom cam lengths, drive inserts, and CAD drawings integration?
A: Absolutely. We offer 100% OEM/ODM customization capabilities. We can adapt housing depths, cam offsets, and head insert configurations (Triangle, Square, Double-Bit, etc.) according to your 2D/3D technical drawings (STEP or DWG formats).
