What is your minimum order quantity for custom parts?

We support single-piece prototypes and low-volume runs through CNC machining, 3D printing and urethane casting, and scale to mass production through die casting, injection molding and stamping. Share your target quantity and our engineers will recommend the most cost-effective process.

What tolerances can Sunmy Hardware hold?

Standard CNC tolerances are ±0.01 mm, and critical features can be held down to ±0.005 mm. Dimensions are verified with CMM inspection and documented in FAI reports before shipment.

How do you protect my drawings and intellectual property?

We sign a Non-Disclosure Agreement with you by email before collecting any 3D or CAD files. You work directly with the factory, so your data is never handed off to brokers.

Which quality documents are available with shipments?

Material certificates, RoHS compliance documents, First Article Inspection (FAI) reports and CMM dimensional reports can be supplied per project.

Which manufacturing processes are done in-house?

CNC machining and stamping are performed in our own facilities. Casting and surface finishing are completed by audited partners. All final quality control, CMM inspection and FAI are executed in-house by Sunmy engineers before global shipping.

Which CAD file formats do you accept?

We accept STEP, IGES, STL, DWG/DXF and PDF 2D drawings. Physical samples can also be reverse-engineered.

OEM Custom Precision CNC Machined Stainless Steel Drilled Filter Sleeve and Flow Control Valve Components Manufacturer

Product Overview

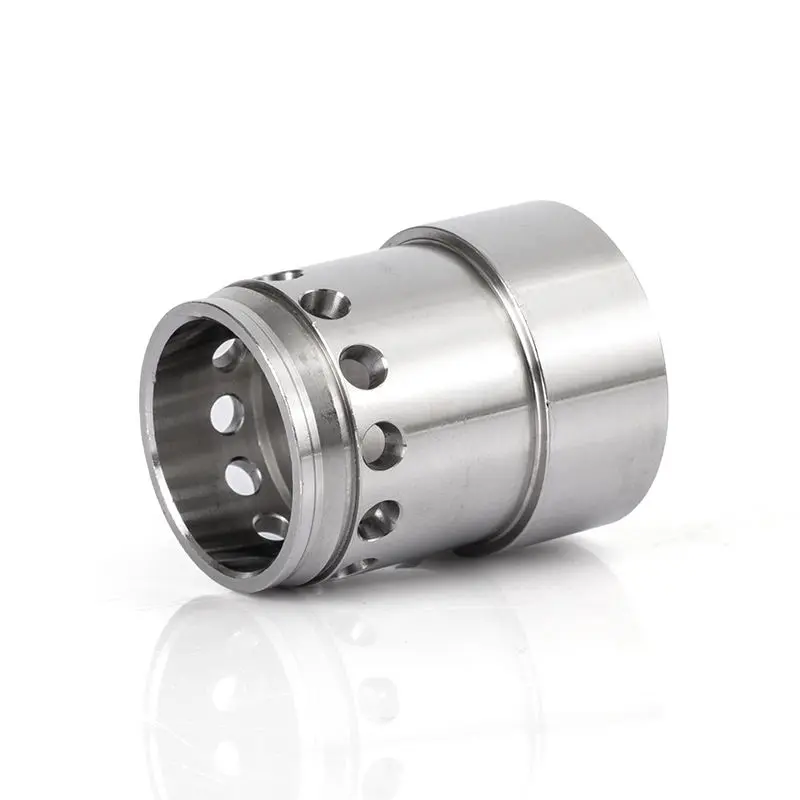

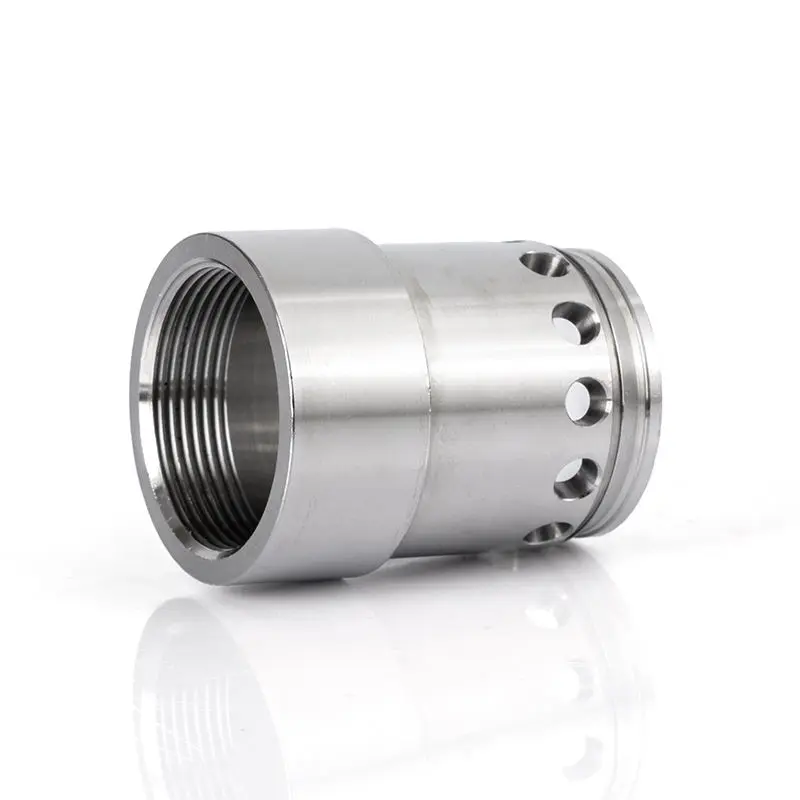

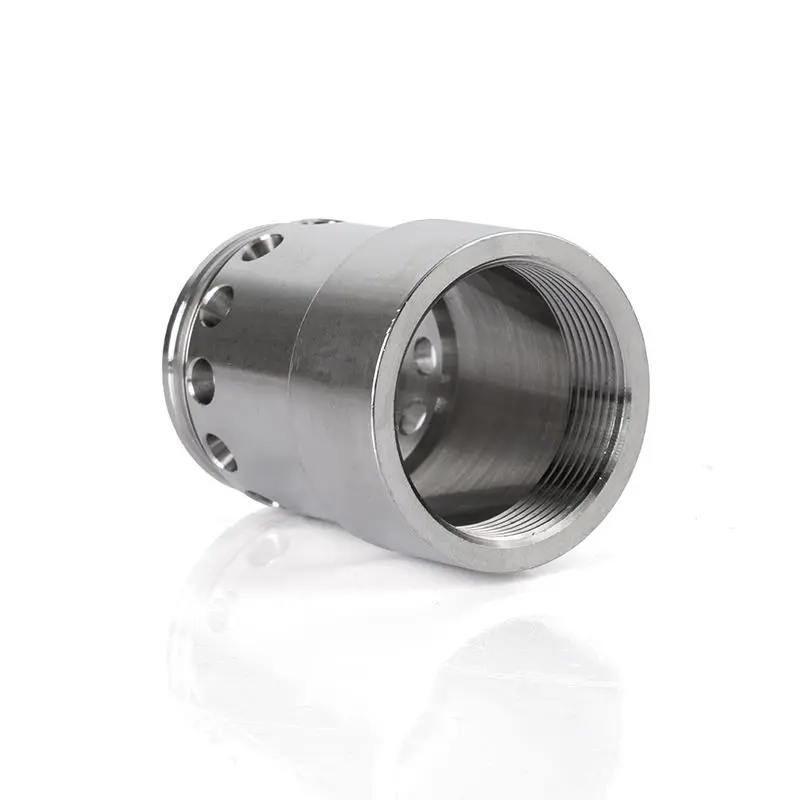

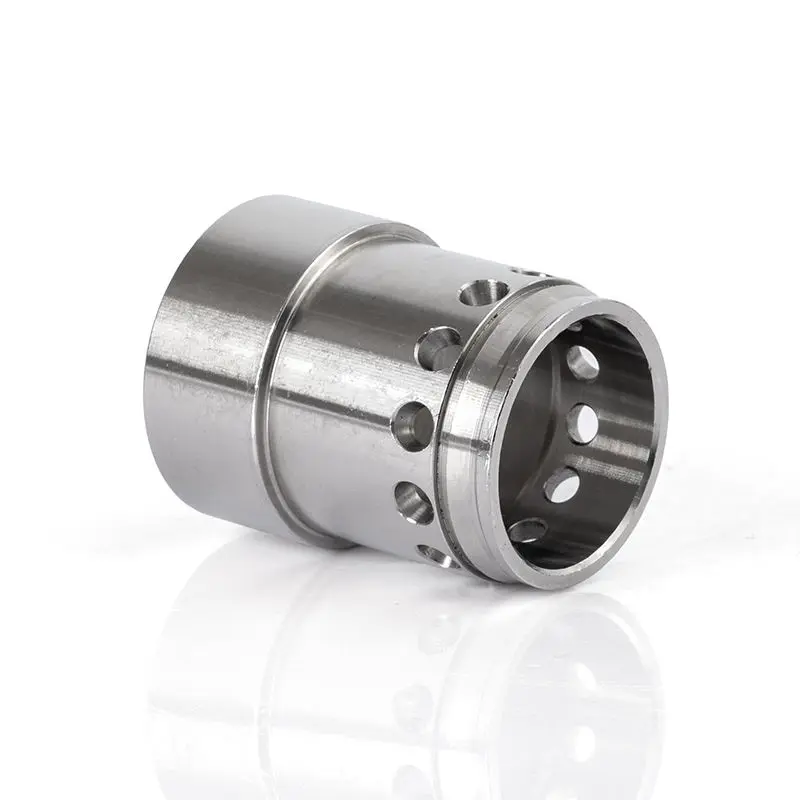

This high-precision custom stainless steel filter sleeve and flow control component represents the pinnacle of premium B2B manufacturing by Shenzhen Sunmy Hardware Co., Ltd. Specially engineered for industrial equipment, high-pressure fluid control networks, and advanced filtration units, this component is manufactured through advanced CNC turning and specialized multi-axis cross-drilling. Featuring robust internal threading on one side and a series of uniform, burr-free radial flow holes on the cylindrical body, it ensures optimal flow regulation and reliable mechanical sealing. As a dedicated OEM/ODM manufacturer, we deliver 100% tailored components manufactured to exact customer specifications.

Manufacturing Process & Engineering Insights

The production of this intricate component requires a sophisticated combination of machining methodologies, categorized under our specialized Precision Turned Parts division:

Precision CNC Turning

Leverages state-of-the-art CNC Swiss-type lathes and turning centers to achieve immaculate concentricity and tight dimensional tolerances on both the outer diameter and precise inner threading.

Automated Cross-Drilling & Milling

Utilizes multi-axis synchronized drilling heads to drill radial flow control ports circumferentially, guaranteeing exact spacing, pitch alignment, and angular positioning.

Advanced Deburring & Finishing

Chemical and mechanical deburring protocols ensure smooth interior intersections between drilled holes and the central bore, preventing turbulence or particle accumulation.

Surface Passivation & Treatment

Post-machining chemical passivation and polishing maximize surface resilience, eliminate free iron, and enhance long-term corrosion resistance in harsh environments.

Technical Specifications

Technical Parameter	Specification Details & Capabilities
Product Name	Custom CNC Stainless Steel Drilled Filter Sleeve & Flow Control Valve Component
Core Process	Precision CNC Turning (Precision Turned Parts), Milling, Cross-Drilling
Available Materials	Stainless Steel (SUS303, SUS304, SUS316, SUS420), Brass, Aluminum, Alloy Steel, Hardened Metals
Dimensions / Size	100% Fully Customized based on customer 2D/3D engineering drawings
Machining Tolerance	Up to ±0.005 mm (High Precision Micro-Machining capability)
Surface Finishing Options	Chemical Passivation, Precision Polishing, Electroplating, Sandblasting, Blackening, Powder Coating
Thread Specifications	Precision Internal Threads (Metric, NPT, G, PT, UNC/UNF customized options)
Hole Configuration	Custom radial flow holes (Optimized diameter, count, and layout per blueprint)
Primary Applications	Industrial Equipment, Hydraulic & Pneumatic Valves, Fluid Regulation, Chemical & Water Filtration Systems
Quality Control Architecture	100% full inspection prior to shipment via high-accuracy Micrometers, CMM, and Optical Projectors
OEM/ODM Availability	Fully accepted and supported (Tailored branding, custom logos, and bespoke geometry)

Key Features & Strategic Advantages

Ultra-Precise Tolerances

Engineered specifically to ensure flawless mechanical alignment and tight, leak-proof interfaces within sensitive valve manifolds.

Elite Corrosion Resistance

Made from industrial stainless steel with passivation treatments for robust resistance against oxidation and chemical wear.

Flawless Hole Finish

Burr-free fluid entryways facilitate streamlined laminar flow and eliminate system contamination risk.

100% Bespoke Engineering

Every dimension, thread pitch, and hole arrangement is custom-developed to fit exact client requirements.

Comprehensive QA

Multi-tiered quality matrix guarantees every delivered component meets elite industrial criteria via strict pre-shipment testing.

Technical FAQ

Q1: What files or blueprints are required to initiate a custom production run?

We accept comprehensive customizations. Customers can provide formal 2D drawings (PDF, DWG, DXF) and 3D step files (STEP, STP, IGS). Our engineering department will perform a thorough DFM (Design for Manufacturability) review prior to mass production.

Q2: Can you accommodate micro-machining or extremely small hole diameters on this sleeve?

Yes, our technical manufacturing infrastructure includes high-precision micro-machining tools. We can easily drill ultra-fine, microscopic flow ports down to sub-millimeter scales with precise positioning.

Q3: How does Sunmy Hardware guarantee zero-defect shipments for international clients?

We enforce a strict quality control matrix. This includes raw material spectrometer validation, first-article inspection (FAI), in-process statistical checks, and a mandatory 100% final visual and dimensional inspection using advanced CMM and optical tools before packaging.

Q4: What is the typical Minimum Order Quantity (MOQ) and production lead time?

Because we are a fully custom manufacturer, the minimum order quantity (MOQ) depends heavily on the component's structural complexity and dimensions. Standard lead times range from 15 to 25 working days, depending on batch sizes and finishing requirements.

Q5: What materials and surface finishing treatments are available?

We support multiple stainless steel grades (SUS303, SUS304, SUS316, SUS420), brass, aluminum, alloy steel, and hardened metals. Finishing options include chemical passivation, polishing, electroplating, sandblasting, blackening, and powder coating.

Q6: What precision tolerance levels can be achieved for fluid control components?

Our CNC turning and multi-axis drilling processes achieve tight machining tolerances up to ±0.005 mm, ensuring perfect mechanical fit, accurate flow regulation, and leak-proof seals in high-pressure networks.
