Product Description

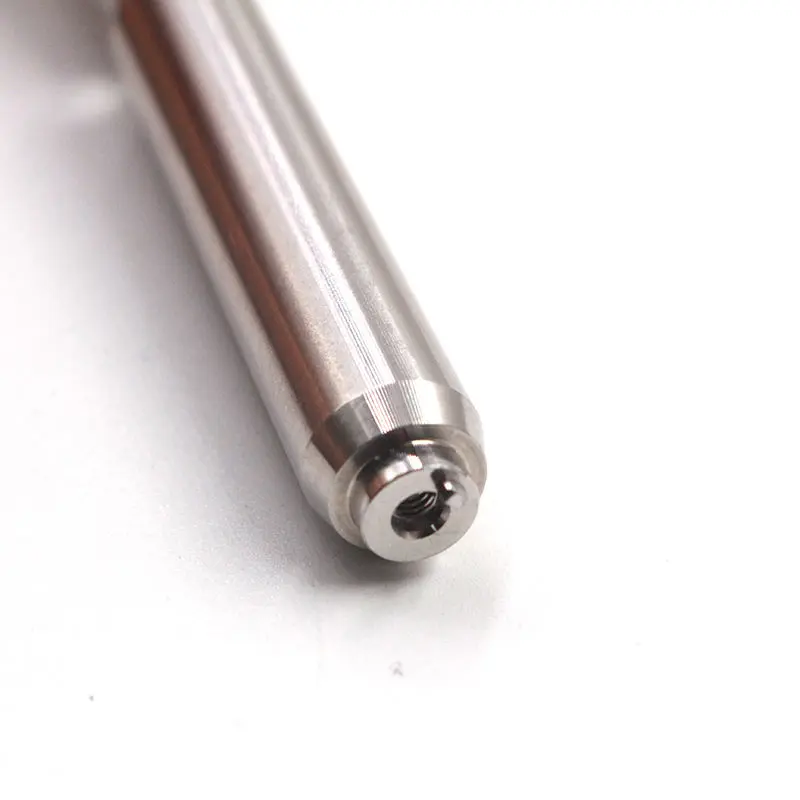

Product Overview
Shenzhen Sunmy Hardware Co., Ltd. supplies build-to-print shafts from customer drawings or physical samples. Material grade, diameter fits, shoulder locations, runout, surface finish and inspection requirements are agreed during engineering review. The review focuses on how the shaft locates, connects and is retained within the assembly. Buyers can specify the shaft profile and end configuration together, with application, loading and service-environment requirements included in the RFQ.
Manufacturing Process & Technical Insights
- Coordinated CNC Turning & Milling: Shaft profiles, collars and grooves are turned, while cross-holes, axial bores and slotted or clevis ends are machined to the drawing. Turn-mill machining or separate fixtured operations are selected according to geometry and batch size. The process plan identifies workholding, locating datums and inspection points for the critical shaft and end features.

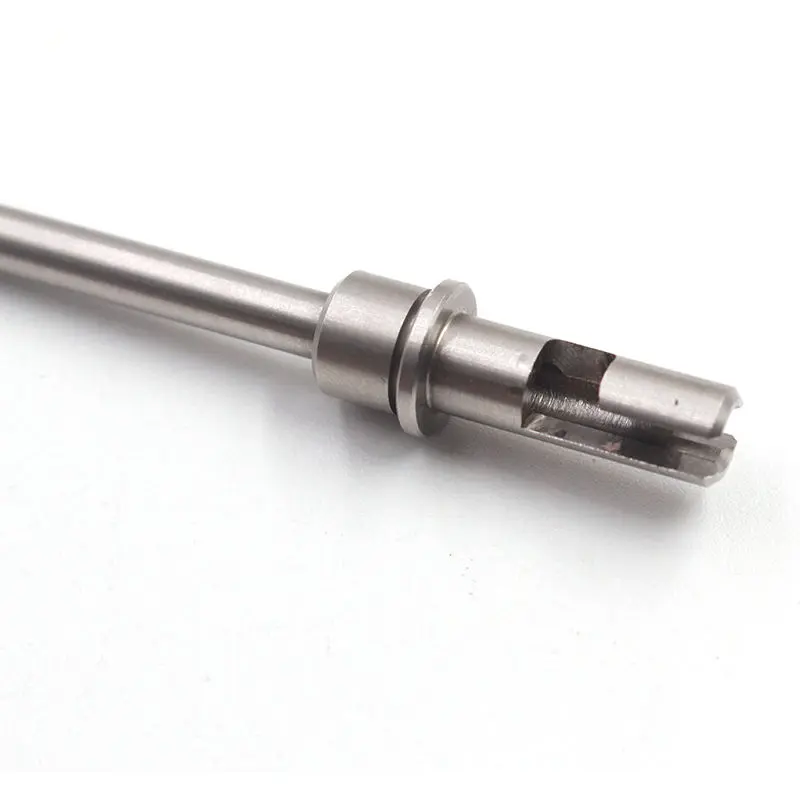

- Functional Feature Review: Shaft diameters, shoulder positions, groove width, slot dimensions and hole locations are checked against the intended mating components. Retaining-ring details, pin fits and internal-thread callouts must be specified on the drawing. The slotted and forked end designs shown are alternative configurations, not interchangeable standard interfaces.
- Deburring, Cleaning & Surface Finish: Machined edges, cross-hole exits and slot intersections are reviewed for burr control. Cleaning and any specified passivation or polishing are included in the agreed process plan. Finish requirements are defined for the selected stainless steel grade. Any requested corrosion testing needs an agreed test method, acceptance criteria and reporting scope before production.
- Stress Relief & Heat Treatment (Optional): Heat treatment is evaluated against the selected material grade, required condition and finished dimensions. Specify the target hardness, treatment specification and required records in the RFQ. The processing sequence and final dimensional checks are then defined in the manufacturing plan.
Key Technical Specifications
Specifications follow the approved drawing and quotation. The table lists customization options, not measured dimensions or verified performance ratings for the photographed parts:
| Parameter | Technical Description / Requirements | Customization Scope |

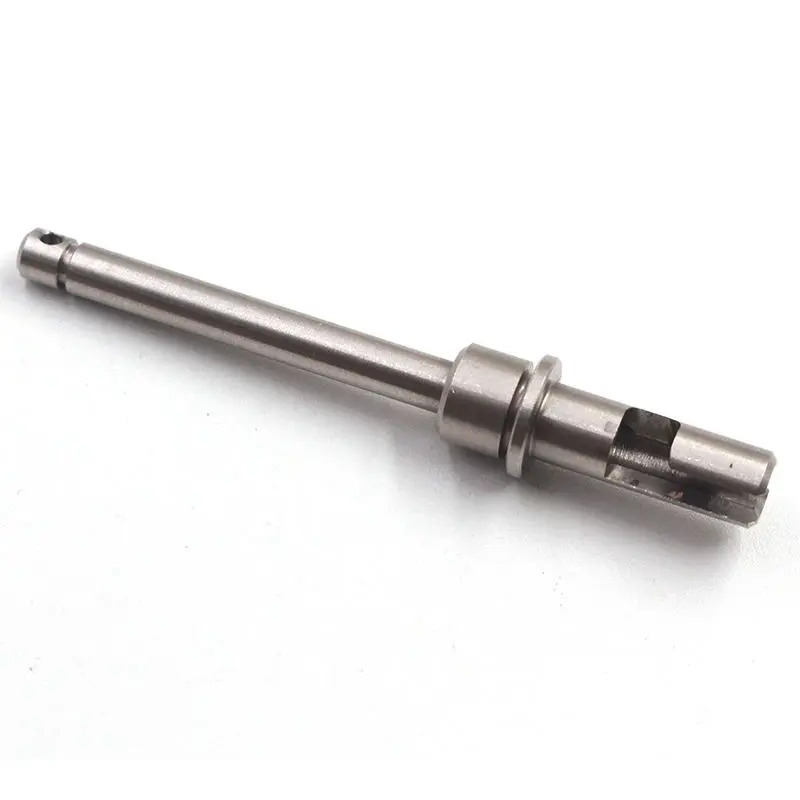

| Product Type | Precision turned stepped shaft with collar and machined end features | Slotted or clevis-style end variants per approved drawing |
| Primary Process | CNC turning, milling, drilling, grooving and tapping | Turn-mill or separate operations; grinding evaluated if specified |
| Material Grades | Stainless steel options for review: 303, 304, 316L, 17-4PH, 416, 420, 430 | Carbon steel, alloy steel, brass or titanium subject to project review |
| Machining Tolerances | Diameter fits, lengths and feature tolerances per approved drawing | Critical limits confirmed after material and geometry review |
| Geometric Tolerances | Shaft runout, shoulder-face and feature-location requirements per drawing | Datum system, measuring method and acceptance criteria agreed |
| Dimensional Capacity | Outer diameters, step lengths and overall length supplied in the RFQ | Feasibility and workholding assessed for the requested dimensions |
| Functional Features | Stepped diameters, collar, ring groove, cross-hole and machined end features | Clevis or slot end, tapped bore, flats, keyways or other specified features |
| Surface Roughness | Surface finish specified separately for journals, milled faces and other areas | Grinding or polishing evaluated for the drawing requirements |
| Surface Treatments | Deburring and cleaning; passivation or polishing when specified | Other finishes evaluated for grade compatibility and application |
| Quality Inspection | Dimensional and visual inspection to the agreed inspection plan | FAI and material records by agreement; PPAP scope requires confirmation |
| Drawing Formats | STEP, IGES, PDF, DWG and DXF; native CAD files by confirmation | Provide critical dimensions, datums, thread details and finish requirements |
| MOQ & Prototype | Prototype, pilot and repeat-production quantities quoted individually | Share first-order quantity, annual demand and sample requirements |
| Production Lead Time | Confirmed after drawing, material, quantity and finishing review | Prototype approval and repeat-order schedules agreed separately |
Key Features & Competitive Advantages
- Coordinated Shaft and End Features: Turning, grooving, drilling and milling are reviewed as one manufacturing package. Shared drawing datums link the shaft diameters, shoulder faces and end features, helping the buyer define assembly requirements without separate, conflicting component specifications.
- Material and Finish Matched to the Project: Specify the stainless steel grade, operating environment and required material condition. Passivation, heat treatment, coatings and any application-specific qualification records are then reviewed against the project requirements.
- Assembly-Focused Surface Requirements: Separate finish and edge callouts for journals, grooves, holes and slot faces focus inspection on the surfaces that engage mating parts. Required surface quality and burr limits form part of the agreed acceptance criteria.
- One Point of Manufacturing Coordination: Sunmy coordinates machining, specified finishing, inspection and packaging through one project contact. The quotation identifies the included operations and documentation for sample approval and repeat orders.
- Prototype-to-Production Support: Sample quantities, pilot batches and repeat orders are quoted to match the project stage. Approved samples and controlled drawing revisions provide the reference for subsequent orders; delivery schedules and any stocking arrangements require separate agreement.
Technical FAQ for B2B International Buyers
Q1: How are shaft fits, runout and cross-hole locations controlled?
A: Machining and inspection follow the datum system and tolerances on the approved drawing. The review covers diameter fits, shaft runout, shoulder positions, cross-hole location and end-slot geometry separately. The process may use turn-mill machining or separate fixtured operations. Measuring methods and inspection frequency are agreed before production; CMM inspection or dedicated gauges are selected where appropriate.
Q2: Can Sunmy Hardware produce custom shafts from drawings or physical samples?
A: Yes. We support build-to-print manufacturing and sample-based development. Send a STEP or IGES model with a dimensioned PDF drawing showing critical fits, datums, threads, finish and material requirements. For sample-based projects, the reproduced geometry and any unknown specifications require customer approval before production. Include your first-order quantity and expected repeat demand for the manufacturing review.
Q3: Which quality reports and material documents can be included?
A: The documentation package is agreed at quotation stage. It may include material certificates, dimensional inspection records, first article results and specified finishing or test reports. Request the required characteristics, sampling level and report format before ordering. PPAP documentation, additional testing and compliance declarations require separate scope confirmation; they are not automatically included with every shipment.
Q4: How are prototype and production lead times determined?
A: Lead time is quoted after reviewing the released drawing, material availability, quantity, fixturing, inspection and any heat treatment or surface finishing. Prototype approval and repeat-production schedules are agreed separately. Provide your required delivery date so the project can be evaluated against the available manufacturing schedule. Expedited production is subject to confirmation, not a fixed published promise.
Q5: How are precision shafts protected during international transit?
A: Packaging is selected around the shaft length, surface finish, exposed threads and end geometry. Options include individual trays, compartment dividers or protective mesh sleeves to limit contact between parts. Moisture protection and outer export packaging are agreed for the material, storage period and shipping method. Specify any cleanliness, identification or customer packaging requirements in the RFQ.
